SD10-L-28W
Ceiling Surface
Products
SD10-M-20W
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 500mA, 35-37V |
| Beam Angle： | 15°/20°/36°/48°/60° |
| Life Time: | > 50,000h - L80 - B10 (Ta 25°C) |
| Operating temperature: | -20℃~40℃ |
| Certificate: | CE/RoHS |
| Weight: | 0.58kg |

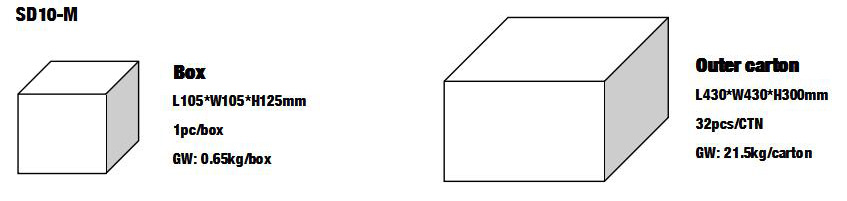

Packaging
information
System
overview
White Black
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 12° | 1910 lm | 3000K | SD101-20W-830-W-15-M | |
| SD101-20W-830-B-15-M | ||||||
| 2102 lm | 4000K | SD101-20W-840-W-15-M | ||||
| SD101-20W-840-B-15-M | ||||||
| 20° | 1778 lm | 3000K | SD101-20W-830-W-20-M | |||
| SD101-20W-830-B-20-M | ||||||
| 1962 lm | 4000K | SD101-20W-840-W-20-M | ||||
| SD101-20W-840-B-20-M | ||||||
| 36° | 1870 lm | 3000K | SD101-20W-830-W-36-M | |||
| SD101-20W-830-B-36-M | ||||||
| 2086 lm | 4000K | SD101-20W-840-W-36-M | ||||
| SD101-20W-840-B-36-M | ||||||
| >90 | 15° | 1566 lm | 3000K | SD101-20W-930-W-15-M | ||
| SD101-20W-930-B-15-M | ||||||
| 20° | 1766 lm | 3000K | SD101-20W-930-W-20-M | |||
| SD101-20W-930-B-20-M | ||||||
| 36° | 1672 lm | 3000K | SD101-20W-930-W-36-M | |||
| SD101-20W-930-B-36-M |
Downloads

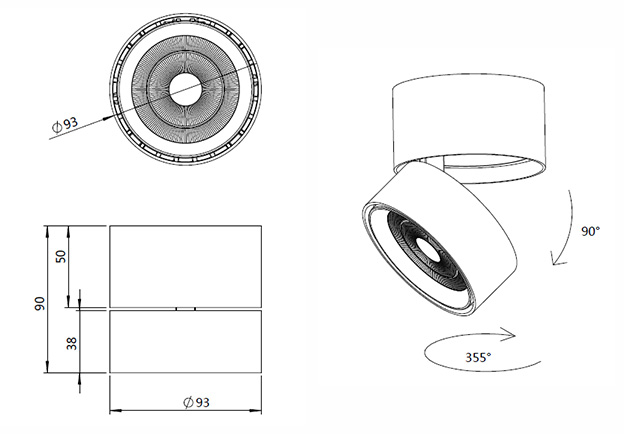

Size
Technical Data

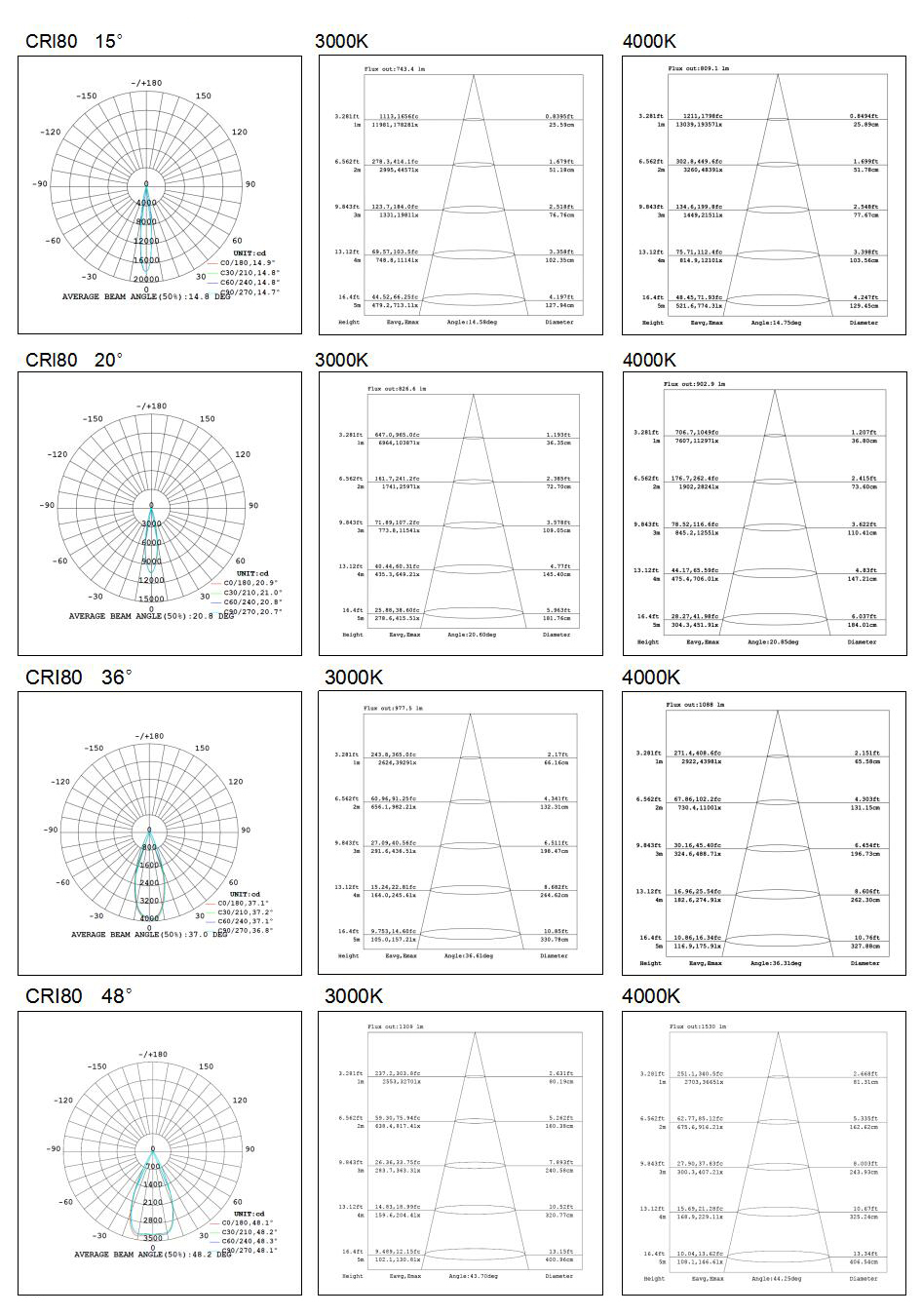

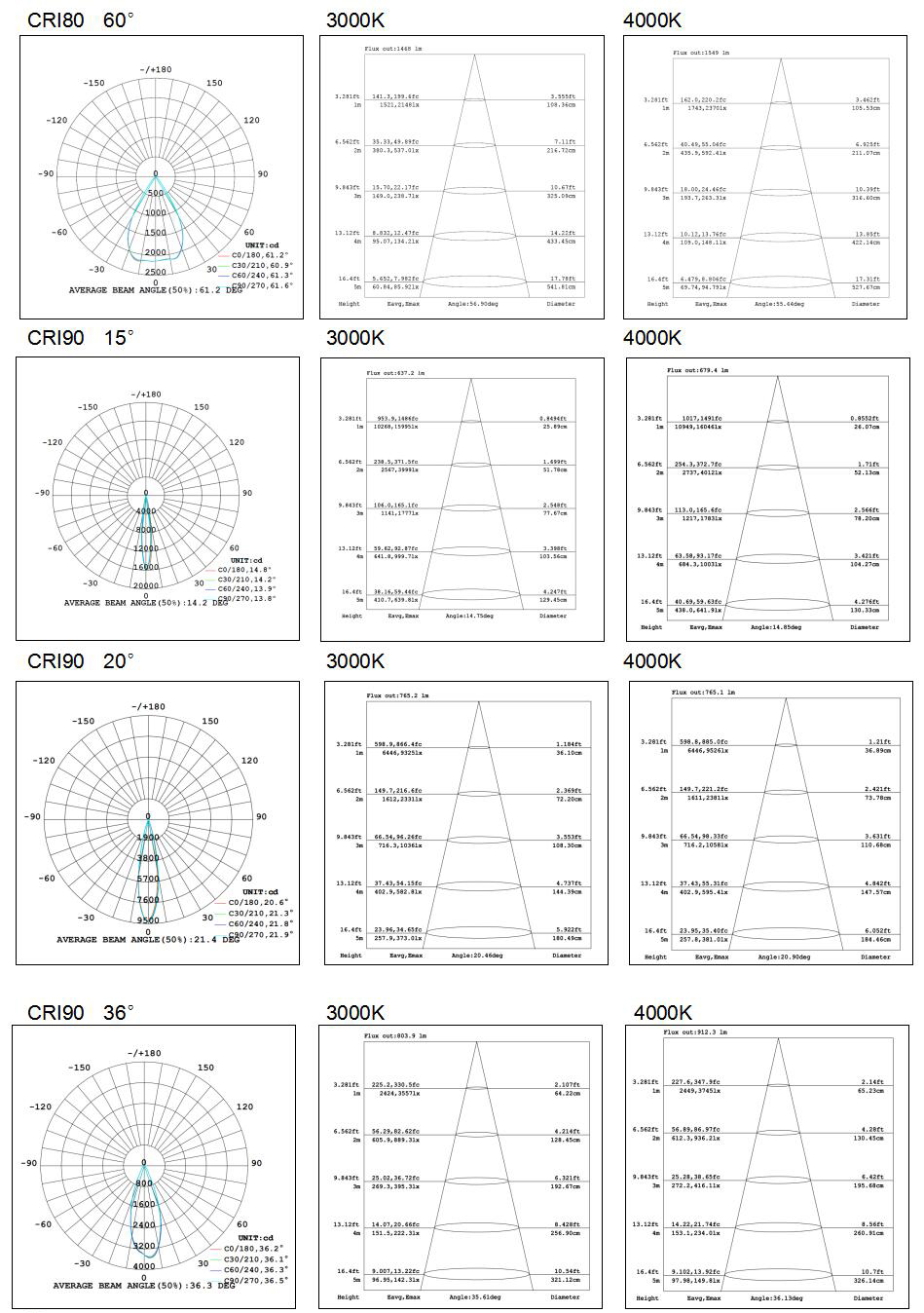

test pattern

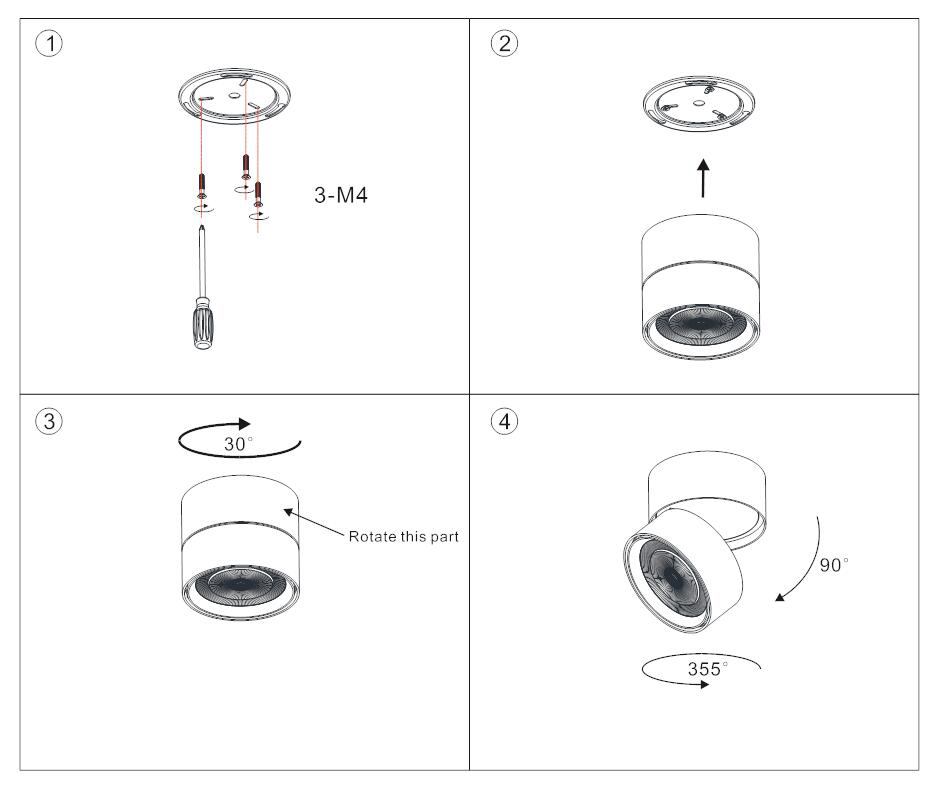

Installation
instruction
Need more informations? Contact us
