SD10-L-28W
Ceiling Surface
Products
SD1-L328A/L646A/L964A
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: |
0.8KG(L328A) 1.4KG(L646A) 2.0KG(L964A) |
Packaging
information
System
overview
| length | Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 328mm | 15W | >80 | 15°/24°/36°/15x35° | 1200 lm | 2700K | SD1-L328A-15W-827-W-** | |
| SD1-L328A-15W-827-B-** | |||||||
| 1300lm | 3000K | SD1-L328A-15W-830-W-** | |||||
| SD1-L328A-15W-830-B-** | |||||||
| 1400 lm | 4000K | SD1-L328A-15W-840-W-** | |||||
| SD1-L328A-15W-840-B-** | |||||||
| 646mm | 30W | >80 | 15°/24°/36°/15x35° | 2300 lm | 2700K | SD1-L646A-30W-827-W-** | |
| SD1-L646A-30W-827-B-** | |||||||
| 2400 lm | 3000K | SD1-L646A-30W-830-W-** | |||||
| SD1-L646A-30W-830-B-** | |||||||
| 2450 lm | 4000K | SD1-L646A-30W-840-W-** | |||||
| SD1-L646A-30W-840-B-** | |||||||
| 964mm | 40W | >80 | 15°/24°/36°/15x35° | 3100lm | 2700K | SD1-L964A-40W-840-W-** | |
| SD1-L964A-40W-840-B-** | |||||||
| 3150 lm | 4000K | SD1-L964A-40W-840-W-** | |||||
| SD1-L964A-40W-840-B-** | |||||||
| 3200 lm | 3000K | SD1-L964A-40W-840-W-** | |||||
| SD1-L964A-40W-840-B-** |
Downloads

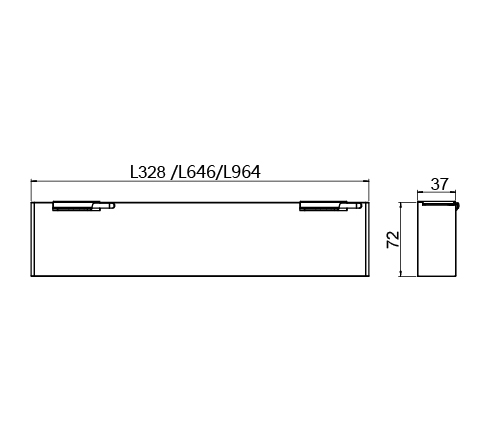

Size
