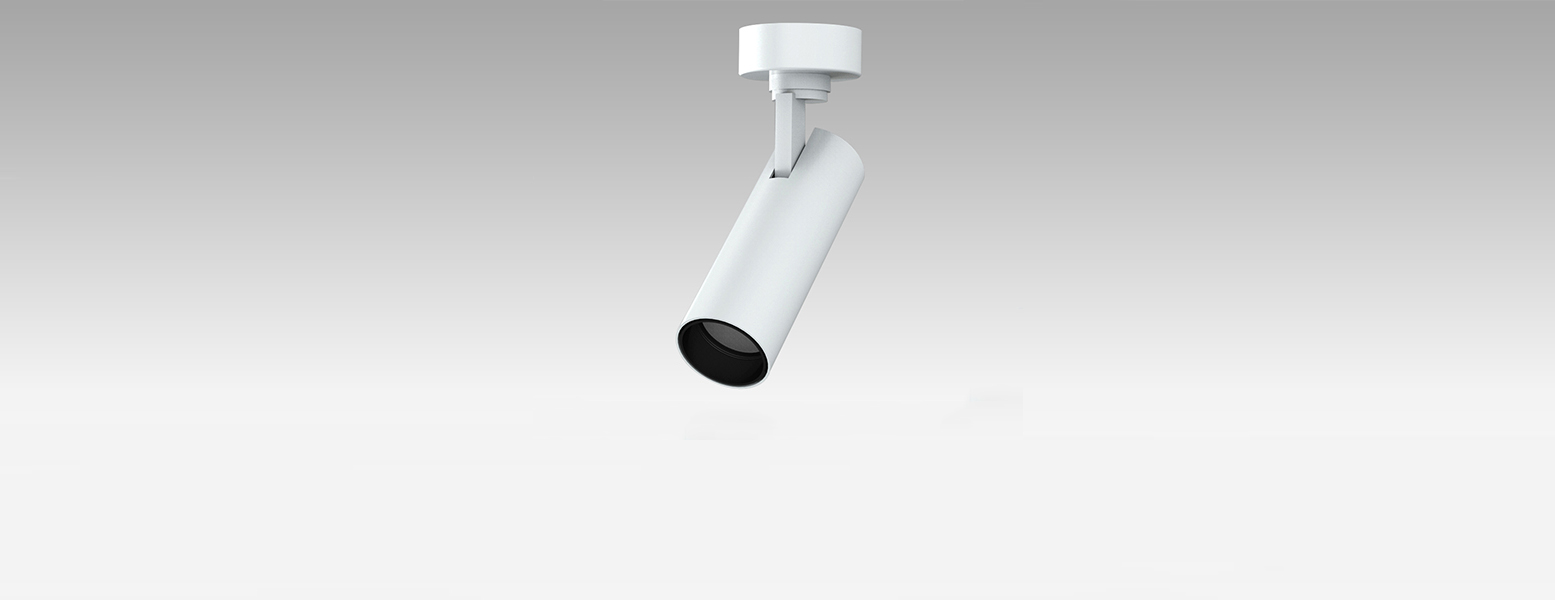

RL042-15W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 700mA (35-37V) |
| Rated life: | > 35,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 0.5KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 15W | >80 | 16° | 1370 lm | 3000K | RL042-15W-830-W-16 | |
| RL042-15W-830-B-16 | ||||||
| 1390 lm | 4000K | RL042-15W-840-W-16 | ||||
| RL042-15W-840-B-16 | ||||||
| 24° | 1560 lm | 3000K | RL042-15W-830-W-24 | |||
| RL042-15W-830-B-24 | ||||||
| 1620 lm | 4000K | RL042-15W-840-W-24 | ||||
| RL042-15W-840-B-24 | ||||||
| 36° | 1630 lm | 3000K | RL042-15W-830-W-36 | |||
| RL042-15W-830-B-36 | ||||||
| 1680 lm | 4000K | RL042-15W-840-W-36 | ||||
| RL042-15W-840-B-36 | ||||||
| >90 | 16° | 1150lm | 3000K | RL042-15W-930-W-16 | ||
| RL042-15W-930-B-16 | ||||||
| 1280 lm | 4000K | RL042-15W-940-W-16 | ||||
| RL042-15W-940-B-16 | ||||||
| 24° | 1300 lm | 3000K | RL042-15W-930-W-24 | |||
| RL042-15W-930-B-24 | ||||||
| 1450 lm | 4000K | RL042-15W-940-W-24 | ||||
| RL042-15W-940-B-24 | ||||||
| 36° | 1370 lm | 3000K | RL042-15W-930-W-36 | |||
| RL042-15W-930-B-36 | ||||||
| 1530 lm | 4000K | RL042-15W-940-W-36 | ||||
| RL042-15W-940-B-36 |
Downloads

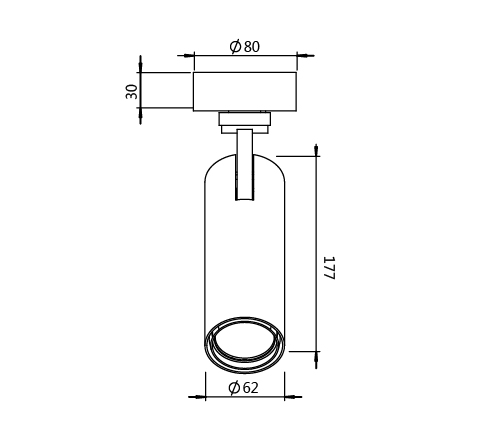

Size
Need more informations? Contact us
