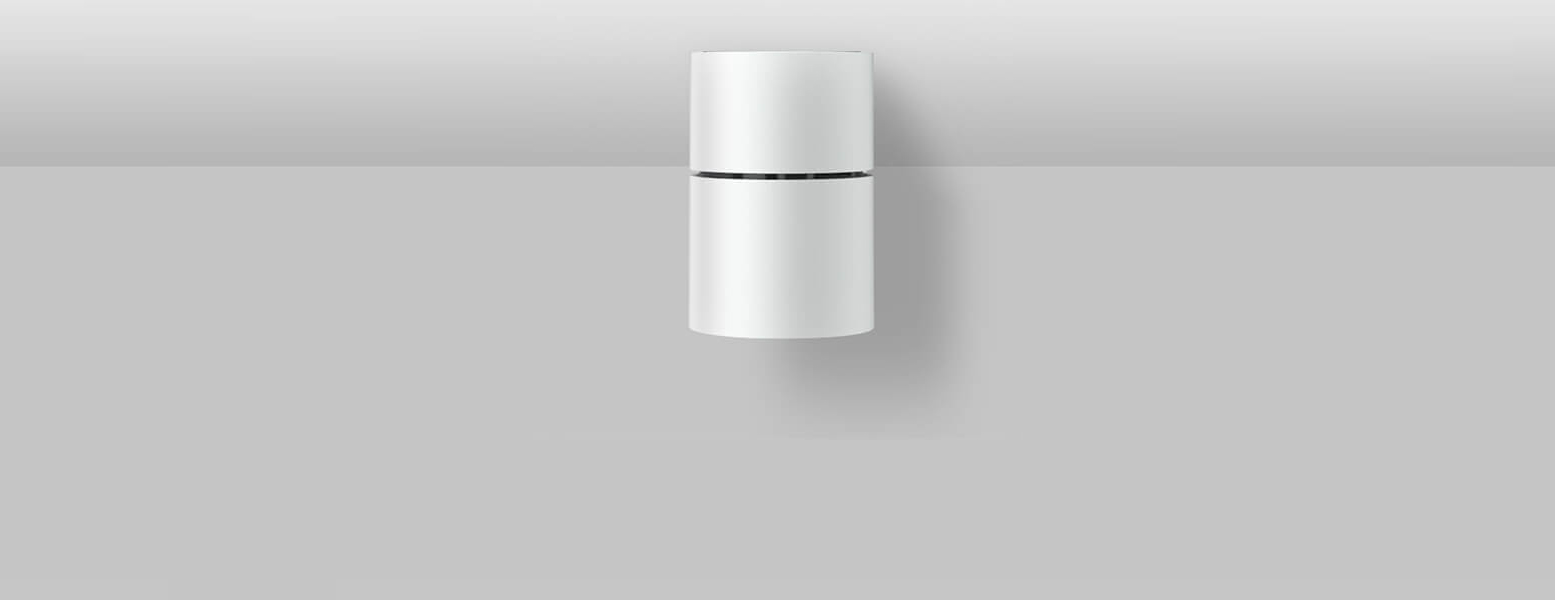

SD031-40W
Using the same lamp body and optical system from the iTrack Pro series, it provides high efficient performance and maximized visual comfort. Featuring with a cylinder and round shape, it can be extended to track mounted and pendant options.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 1000mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | NON-Dimmable |
| Weight: | 1.70KG |
| Package(mm): | 730x310x300mm ,10pcs/carton |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 40W | >80 | 12° | 4140 lm | 3000K | SD031-40W-830-W-12 | |
| SD031-40W-830-B-12 | ||||||
| 4420 lm | 4000K | SD031-40W-840-W-12 | ||||
| SD031-40W-840-B-12 | ||||||
| 20° | 4180 lm | 3000K | SD031-40W-830-W-20 | |||
| SD031-40W-830-B-20 | ||||||
| 4350 lm | 4000K | SD031-40W-840-W-20 | ||||
| SD031-40W-840-B-20 | ||||||
| 45° | 4030 lm | 3000K | SD031-40W-830-W-45 | |||
| SD031-40W-830-B-45 | ||||||
| 4140 lm | 4000K | SD031-40W-840-W-45 | ||||
| SD031-40W-840-B-45 | ||||||
| >90 | 12° | 3530 lm | 3000K | SD031-40W-930-W-12 | ||
| SD031-40W-930-B-12 | ||||||
| 3700 lm | 4000K | SD031-40W-940-W-12 | ||||
| SD031-40W-940-B-12 | ||||||
| 20° | 3550 lm | 3000K | SD031-40W-930-W-20 | |||
| SD031-40W-930-B-20 | ||||||
| 3740 lm | 4000K | SD031-40W-940-W-20 | ||||
| SD031-40W-940-B-20 | ||||||
| 45° | 3400 lm | 3000K | SD031-40W-930-W-45 | |||
| SD031-40W-930-B-45 | ||||||
| 3650 lm | 4000K | SD031-40W-940-W-45 | ||||
| SD031-40W-940-B-45 |
Downloads

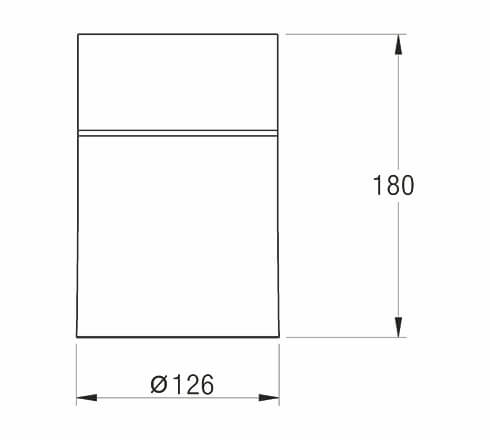

Size
