SD10-L-28W
Ceiling Surface
Products
ALST55-15
Product
information
| Product number | ALST55 - 15 |
| Input Voltage (v): | 220-240V AC |
| Dimming | On/Off，Triac，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | 350 |
| Tilting Angle (degree) | 90 |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.62 |
| G.W. Carton (Kg) | 15 |
| Master carton dimensions(mm) | 720x295x328 |
| Quantity per carton(PCS) | 20 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
15 |
15W | 90 | 1120.2 lm | 4000K | ALST55S-NC15G40-S |
| 1056.8 lm | 3000K | ALST55S-NC15G30-S | |||
| 982.8 lm | 2700K | ALST55S-NC15G27-S | |||
21 |
15W | 90 | 1070.8 lm | 4000K | ALST55S-NC15G40-M |
| 1010.2 lm | 3000K | ALST55S-NC15G30-M | |||
| 939.5 lm | 2700K | ALST55S-NC15G27-M | |||
36 |
15W | 90 | 908.7 lm | 4000K | ALST55S-NC15G40-F |
| 857.3 lm | 3000K | ALST55S-NC15G30-F | |||
| 797.3 lm | 2700K | ALST55S-NC15G27-F | |||
49 |
15W | 90 | 973.0 lm | 4000K | ALST55S-NC15G40-WF |
| 918.0 lm | 3000K | ALST55S-NC15G30-WF | |||
| 853.7 lm | 2700K | ALST55S-NC15G27-WF |
Downloads

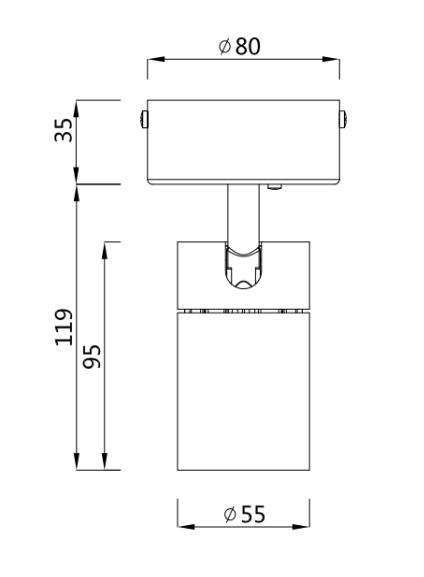

Size
Need more informations? Contact us
