REG2075WS-11W

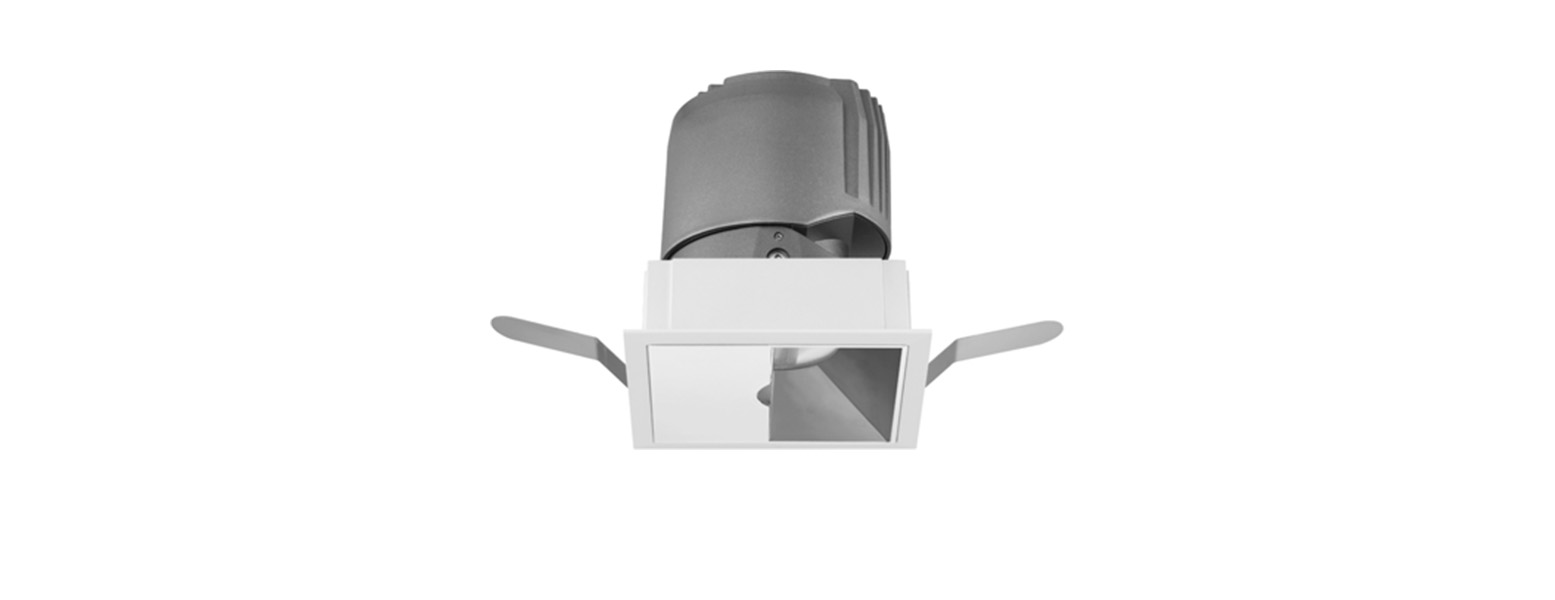

This glare-free fixture family allows architects and designers to work with different lighting applications. Thanks to precise engineering, the use of superior reflector materials and various glare control accessories, the EDGE II fixtures guarantee maximum visual comfort and optimal optic performance. The miniature design with clean sightlines make people focus on the light instead of the luminaire.
Product
information
| Product number | REG2075W - 11W |
| Input Voltage (v) | 220-240V |
| Dimming | On/Off，TRIAC，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | 350 |
| Tilting Angle (degree) | N/A |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~ +50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.37 |
| G.W. Carton (Kg) | 18 |
| Master carton dimensions(mm) | 678x670x277 |
| Quantity per carton(PCS) | 40 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
| W10-S | 11W | 90 | 407.5 | 4000K | REG2075WS-11G40 |
| 391.0 | 3000K | REG2075WS-11G30 | |||
| 367.5 | 2700K | REG2075WS-11G27 | |||
| W10-M | 11W | 90 | 561.0 | 4000K | REG2075WM-11G40 |
| 485.2 | 3000K | REG2075WM-11G30 | |||
| 456.0 | 2700K | REG2075WM-11G27 | |||
| W10-F | 11W | 90 | 467.5 | 4000K | REG2075WF-11G40 |
| 451.2 | 3000K | REG2075WF-11G30 | |||
| 424.1 | 2700K | REG2075WF-11G27 |
