DP090R-14W

Product
information

Product number：	DP090R - 14W
Track System:	220-240V~
Dimming:	On/Off，TRIAC，1-10V，DALI
Light source:	COB LED
luminaire Lifetime：	50.000h（L80B50, Ta25°C）
IP Rating:	54
Working Temperature (°C)	-5 ~ +30
Material:	Aluminium
Fitting Colors:	Sandy White / Sandy Black

Packaging
information

N.W. lamp (Kg):	0.51
G.W. Carton (Kg):	13.3
Master carton dimensions(mm):	465x295x288
Quantity per carton:	24

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
18	14W	90	1148 lm	4000K	DP090R-14G40-S01
			1115 lm	3000K	DP090R-14G30-S01
			1059 lm	2700K	DP090R-14G27-S01
24	14W	90	1224 lm	4000K	DP090R-14G40-M01
			1189 lm	3000K	DP090R-14G30-M01
			1129 lm	2700K	DP090R-14G27-M01
38	14W	90	1218 lm	4000K	DP090R-14G40-F01
			1183 lm	3000K	DP090R-14G30-F01
			1123 lm	2700K	DP090R-14G27-F01
56	14W	90	1289 lm	4000K	DP090R-14G40-WF0
			1252 lm	3000K	DP090R-14G30-WF01
			1189 lm	2700K	DP090R-14G27-WF01

Downloads

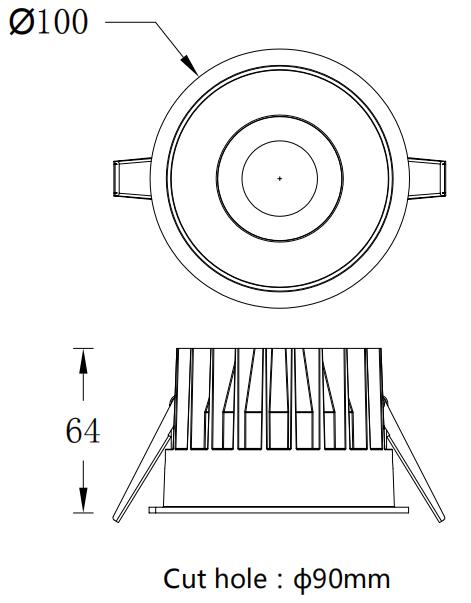

Size

DP090R - 14W

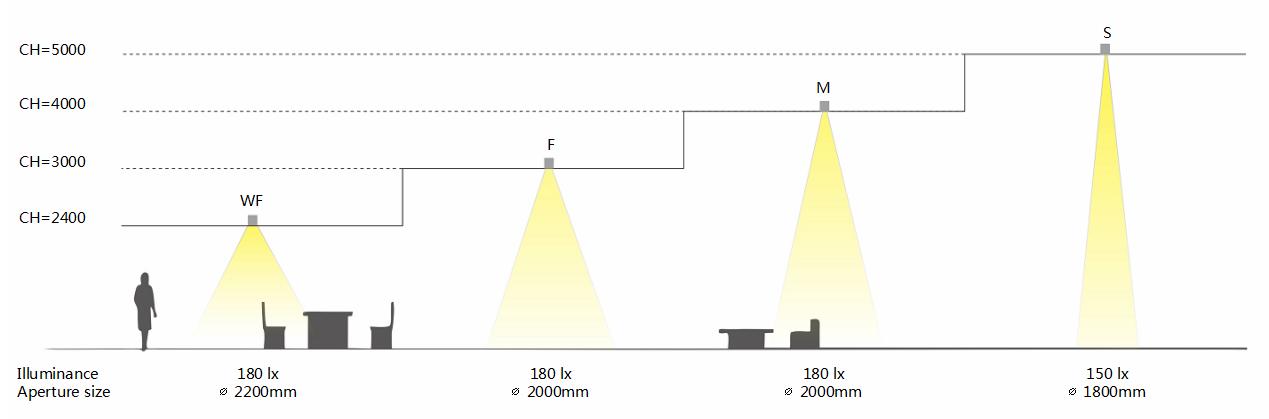

Illuminance

DP090R - 14W
