DL32-L-28W

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	700mA, 35-37V
Beam Angle：	12°/24°/36°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	0.85kg

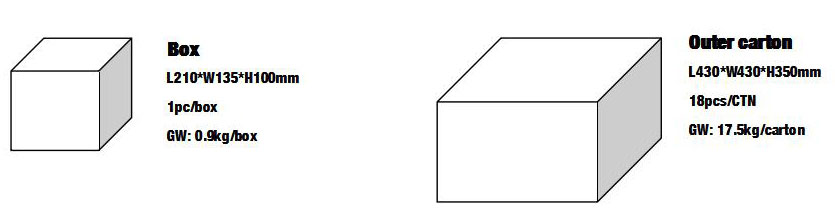

Packaging
information

System
overview

White

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
28W	>80	12°	2825 lm	3000K		DL321-28W-830-W-12-L
		12°	2897 lm	4000K		DL321-28W-840-W-12-L
		24°	2803 lm	3000K		DL321-28W-830-W-24-L
		24°	2871 lm	4000K		DL321-28W-840-W-24-L
		36°	2876 lm	3000K		DL321-28W-830-W-36-L
		36°	2942 lm	4000K		DL321-28W-840-W-36-L
	>90	12°	2165 lm	3000K		DL321-28W-930-W-12-L
		12°	2644 lm	4000K		DL321-28W-940-W-12-L
		24°	2159 lm	3000K		DL321-28W-930-W-24-L
		24°	2644 lm	4000K		DL321-28W-940-W-24-L
		36°	2217 lm	3000K		DL321-28W-930-W-36-L
		36°	2714 lm	4000K		DL321-28W-940-W-36-L

Downloads

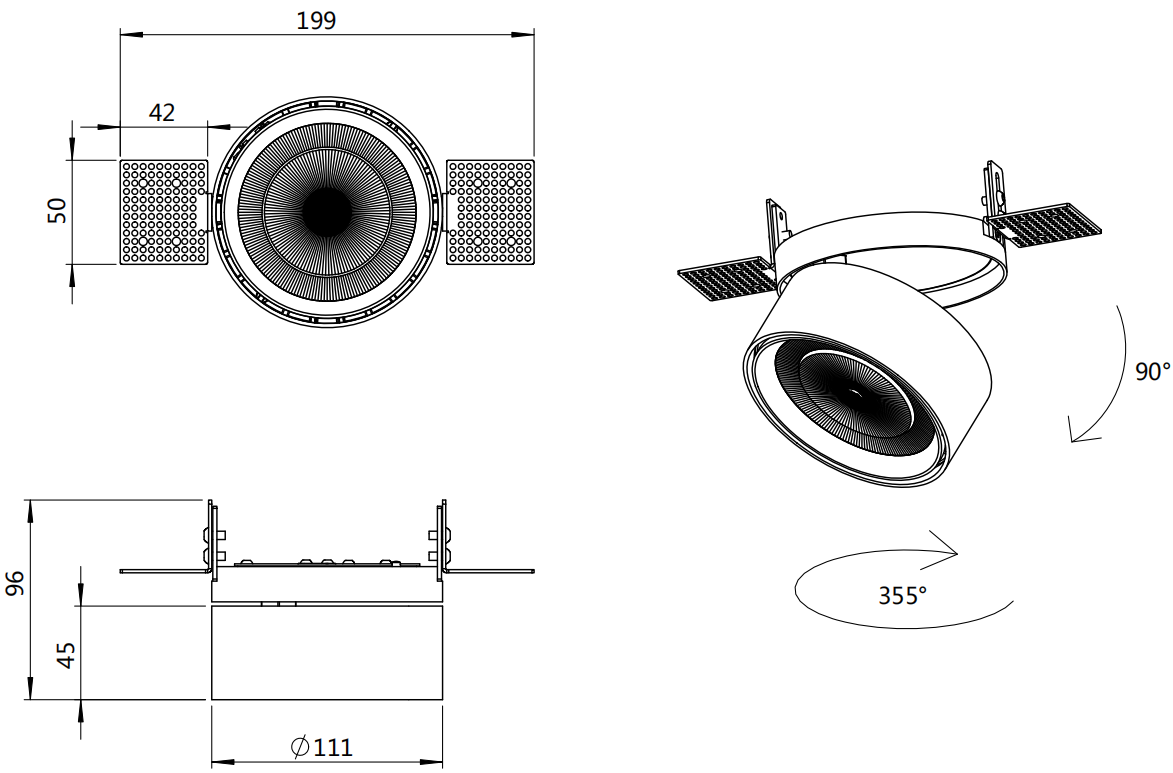

Size

Technical Data

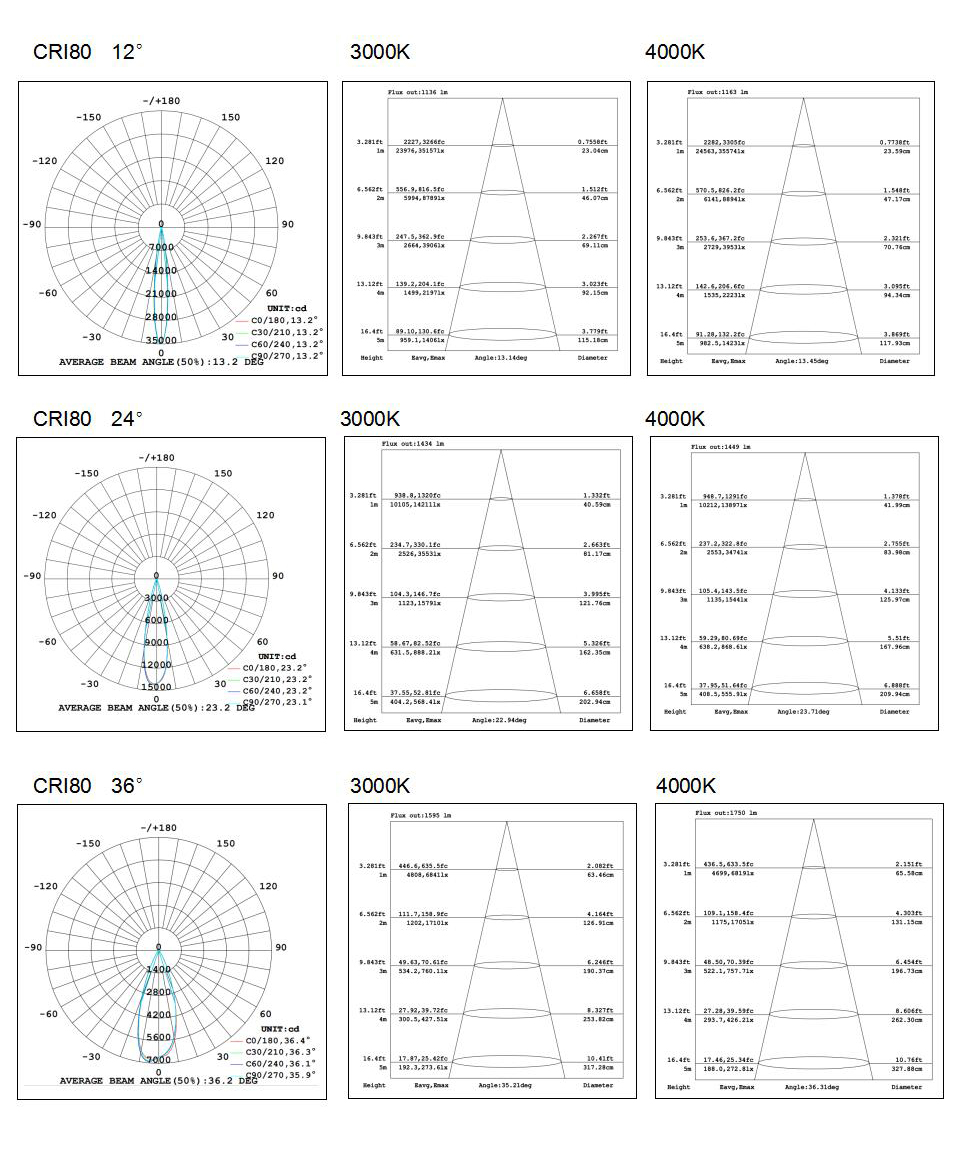

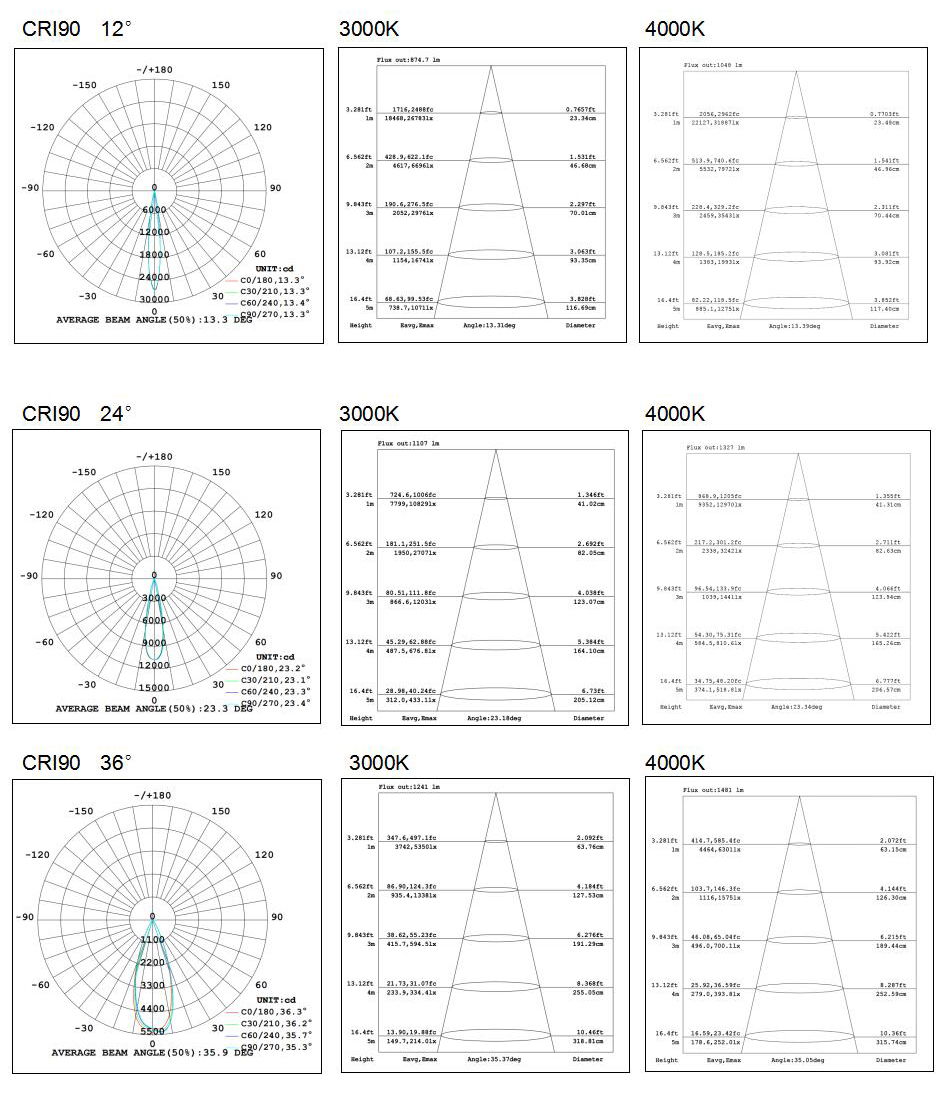

test pattern

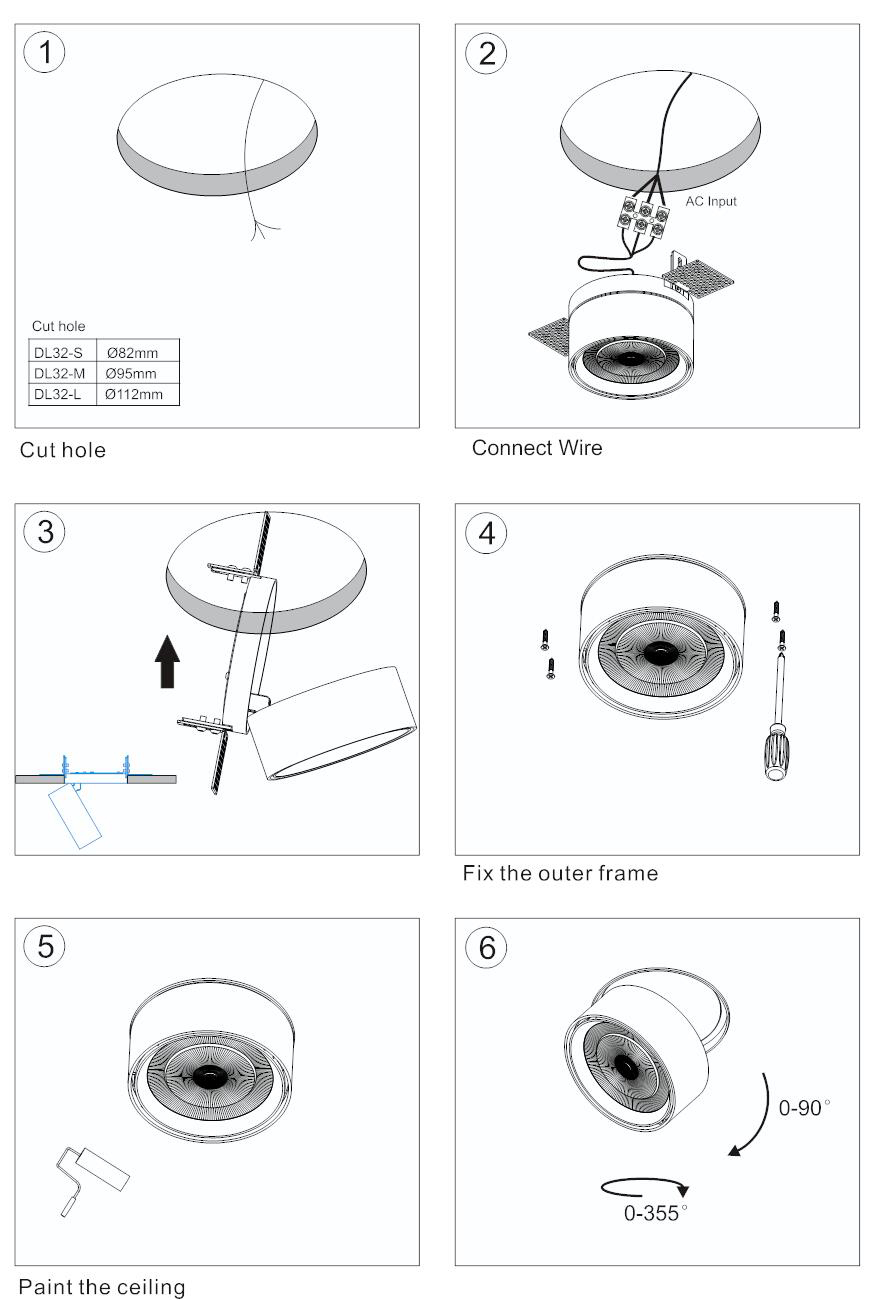

Installation
instruction
