DP090R-14W
Recessed
Products

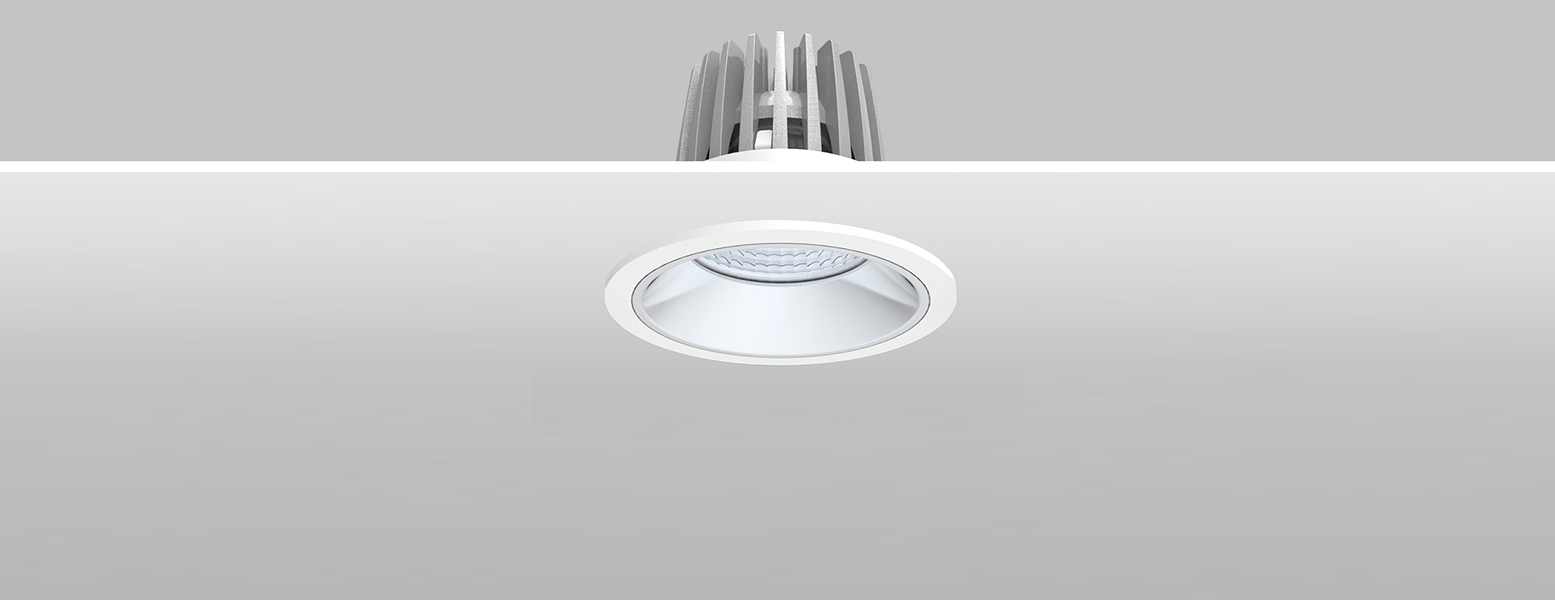

BL100-20W
This family is featured with interchangeable light engine system. 2 light engines of different size can be changed in between more than 20 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The IMS family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere - LED Modules and Light Engines.
Product
information
| Name | Parameters | |
| Light source: | COB | |
| Input Voltage: | AC220~240V 50/60Hz | |
| Current: (Adjustable) | 350mA | 500mA |
| 15W | 20W | |
| Rated life: | >50,000 hours | |
| Operating temperature: | -20℃~40℃ | |
| Storage temperature: | -30℃~60℃ | |
| Certificate: | ||
| Dimmability: |
Dimmable Optional |
|
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 15° | 2180 lm | 3000K | IMS-BL100-20W-830-S-15 | |
| 2190 lm | 4000K | IMS-BL100-20W-840-S-15 | ||||
| 28° | 2180 lm | 3000K | IMS-BL100-20W-830-S-28 | |||
| 2188 lm | 4000K | IMS-BL100-20W-840-S-28 | ||||
| 36° | 2185 lm | 3000K | IMS-BL100-20W-830-S-36 | |||
| 2192 lm | 4000K | IMS-BL100-20W-840-S-36 | ||||
| >90 | 15° | 1805 lm | 3000K | IMS-BL100-20W-930-S-15 | ||
| 28° | 1795 lm | 3000K | IMS-BL100-20W-930-S-28 | |||
| 36° | 1798 lm | 3000K | IMS-BL100-20W-930-S-36 |
Downloads

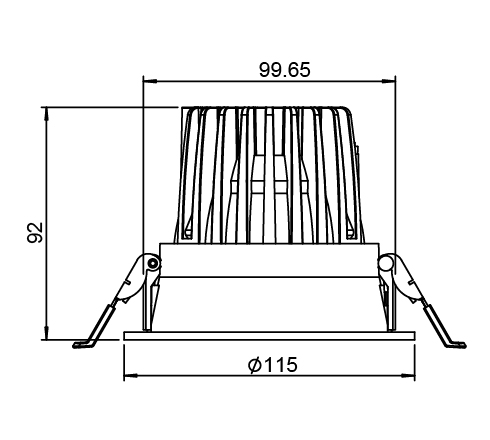

Size
