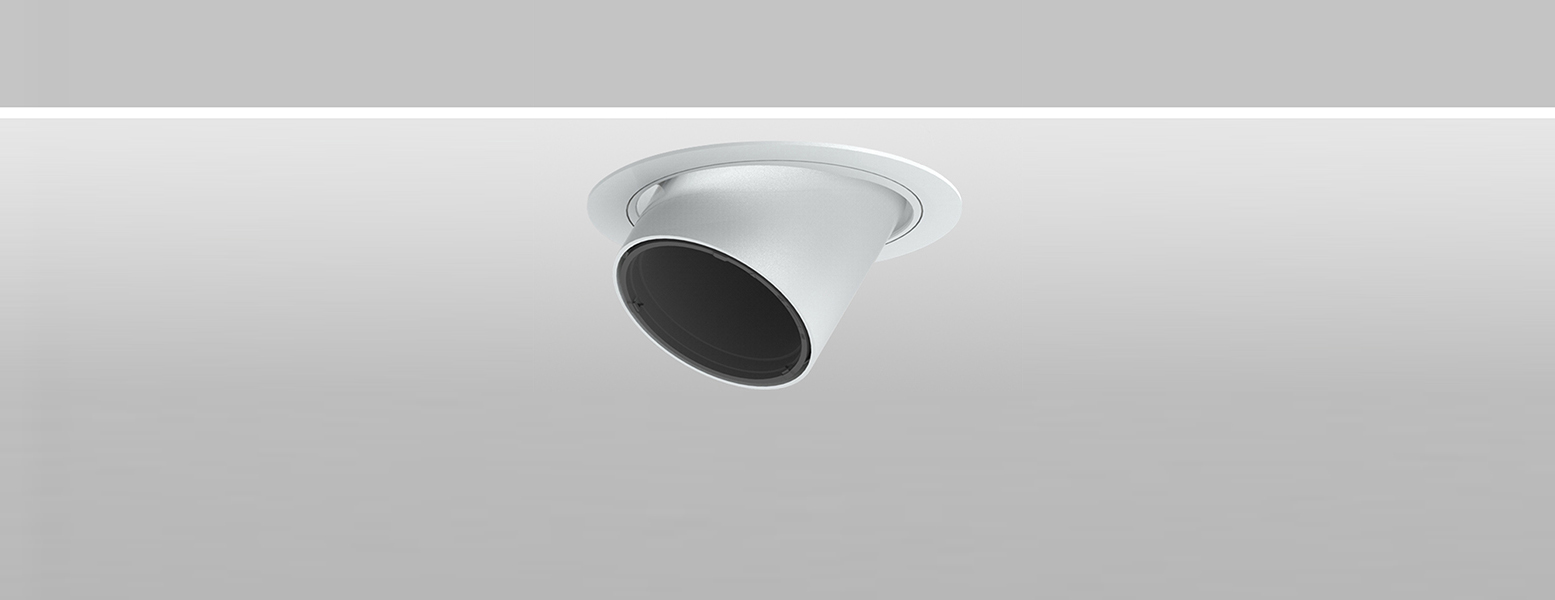

DL191-20W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 500mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Weight: | 0.75KG |
| Package(mm): | L170*W170*H160mm, 16pcs/carton |
Packaging
information
| Master carton dimensions(mm)： |
L170*W170*H165mm (Box) L700*W370*H390mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 16pcs/CTN |
| G.W. Carton (Kg)： |
0.8kg/box 14kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 12° | 2060 lm | 3000K | DL191-20W-830-W-12 | |
| DL191-20W-830-B-12 | ||||||
| 2056 lm | 4000K | DL191-20W-840-W-12 | ||||
| DL191-20W-840-B-12 | ||||||
| 24° | 2003lm | 3000K | DL191-20W-830-W-24 | |||
| DL191-20W-830-B-24 | ||||||
| 2016 lm | 4000K | DL191-20W-840-W-24 | ||||
| DL191-20W-840-B-24 | ||||||
| 36° | 1988 lm | 3000K | DL191-20W-830-W-36 | |||
| DL191-20W-830-B-36 | ||||||
| 2001 lm | 4000K | DL191-20W-840-W-36 | ||||
| DL191-20W-840-B-36 | ||||||
| >90 | 12° | 1692 lm | 3000K | DL191-20W-930-W-12 | ||
| DL191-20W-930-B-12 | ||||||
| 1870 lm | 4000K | DL191-20W-930-W-12 | ||||
| DL191-20W-930-B-12 | ||||||
| 24° | 1663 lm | 3000K | DL191-20W-930-W-24 | |||
| DL191-20W-930-B-24 | ||||||
| 1827 lm | 4000K | DL191-20W-930-W-24 | ||||
| DL191-20W-930-B-24 | ||||||
| 36° | 1657 lm | 3000K | DL191-20W-930-W-36 | |||
| DL191-20W-930-B-36 | ||||||
| 1827 lm | 4000K | DL191-20W-940-W-36 | ||||
| DL191-20W-940-B-36 |
Downloads

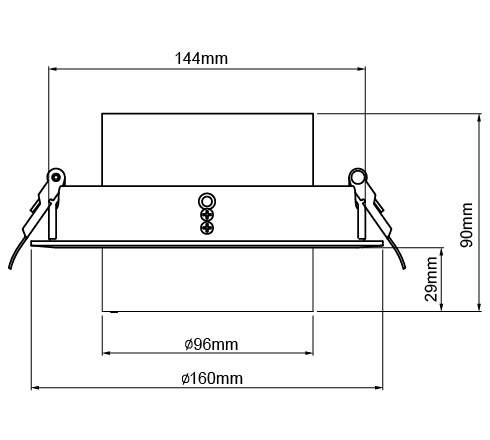

Size
