SD12-L-28W
Suspension
Products
SD10-S-15W
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 350mA, 35-37V |
| Beam Angle： | 12°/24°/36°/60° |
| Life Time: | > 50,000h - L80 - B10 (Ta 25°C) |
| Operating temperature: | -20℃~40℃ |
| Certificate: | CE/RoHS |
| Weight: | 0.48kg |
Packaging
information
System
overview
White Black
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 15W | >80 | 12° | 1500 lm | 3000K | SD102-15W-830-W-12-S | |
| SD102-15W-830-B-12-S | ||||||
| 1600 lm | 4000K | SD102-15W-840-W-12-S | ||||
| SD102-15W-840-B-12-S | ||||||
| 24° | 1480 lm | 3000K | SD102-15W-830-W-24-S | |||
| SD102-15W-830-B-24-S | ||||||
| 1580 lm | 4000K | SD102-15W-840-W-24-S | ||||
| SD102-15W-840-B-24-S | ||||||
| 36° | 1520 lm | 3000K | SD102-15W-830-W-36-S | |||
| SD102-15W-830-B-36-S | ||||||
| 1650 lm | 4000K | SD102-15W-840-W-36-S | ||||
| SD102-15W-840-B-36-S | ||||||
| >90 | 12° | 1270 lm | 3000K | SD102-15W-930-W-12-S | ||
| SD102-15W-930-B-12-S | ||||||
| 24° | 1370 lm | 3000K | SD102-15W-930-W-24-S | |||
| SD102-15W-930-B-24-S | ||||||
| 36° | 1260 lm | 3000K | SD102-15W-930-W-36-S | |||
| SD102-15W-930-B-36-S |
Downloads

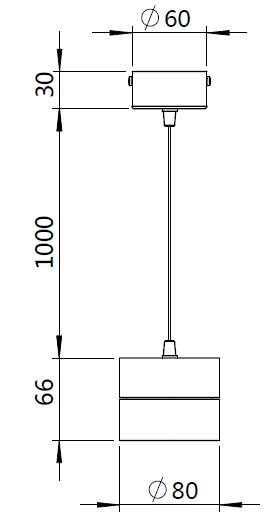

Size
Technical Data
test pattern

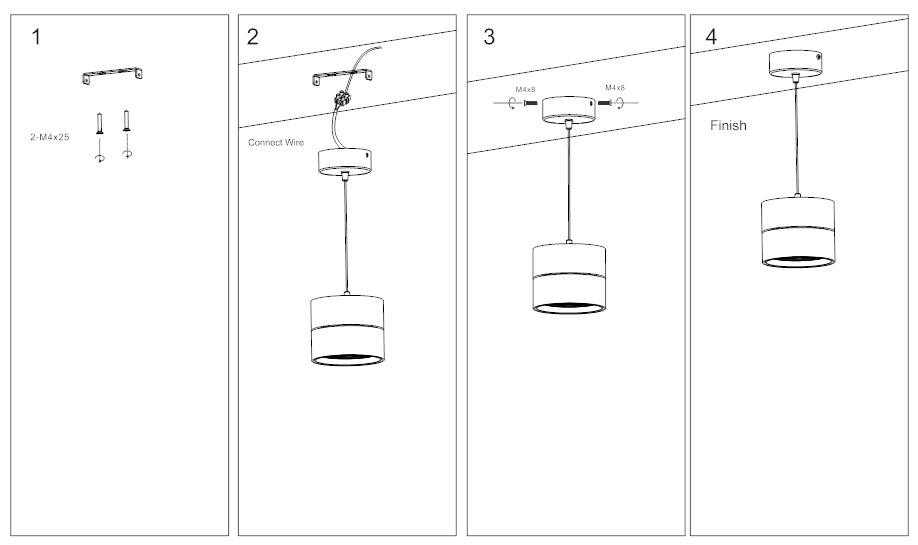

Installation
instruction
Need more informations? Contact us
