SD12-L-28W
Suspension
Products
SD10-L-28W
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 700mA, 35-37V |
| Beam Angle： | 12°/24°/36° |
| Life Time: | > 50,000h - L80 - B10 (Ta 25°C) |
| Operating temperature: | -20℃~40℃ |
| Certificate: | CE/RoHS |
| Weight: | 0.85kg |

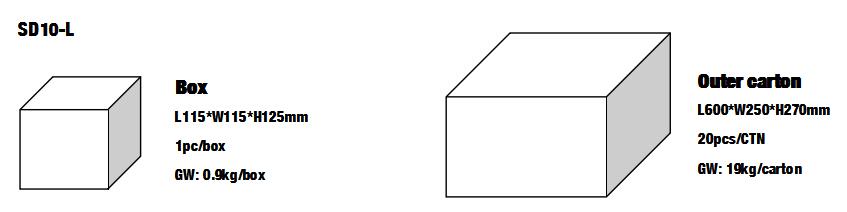

Packaging
information
System
overview
White Black
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 28W | >80 | 12° | 2825 lm | 3000K | SD102-28W-830-W-12-L | |
| SD102-28W-830-B-12-L | ||||||
| 2897 lm | 4000K | SD102-28W-840-W-12-L | ||||
| SD102-28W-840-B-12-L | ||||||
| 24° | 2803 lm | 3000K | SD102-28W-830-W-24-L | |||
| SD102-28W-830-B-24-L | ||||||
| 2871 lm | 4000K | SD102-28W-840-W-24-L | ||||
| SD102-28W-840-B-24-L | ||||||
| 36° | 2876 lm | 3000K | SD102-28W-830-W-36-L | |||
| SD102-28W-830-B-36-L | ||||||
| 2942 lm | 4000K | SD102-28W-840-W-36-L | ||||
| SD102-28W-840-B-36-L | ||||||
| >90 | 12° | 2165 lm | 3000K | SD102-28W-930-W-12-L | ||
| SD102-28W-930-B-12-L | ||||||
| 24° | 2159 lm | 3000K | SD102-28W-930-W-24-L | |||
| SD102-28W-930-B-24-L | ||||||
| 36° | 2217 lm | 3000K | SD102-28W-930-W-36-L | |||
| SD102-28W-930-B-36-L |
Downloads

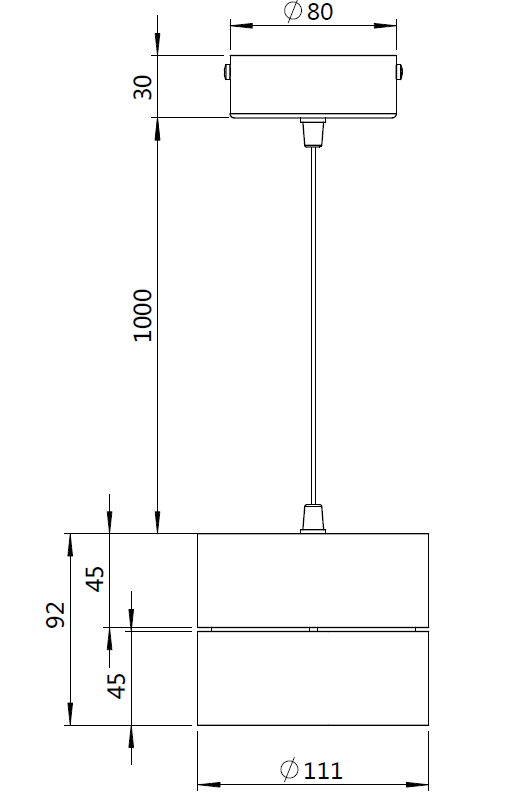

Size
Technical Data

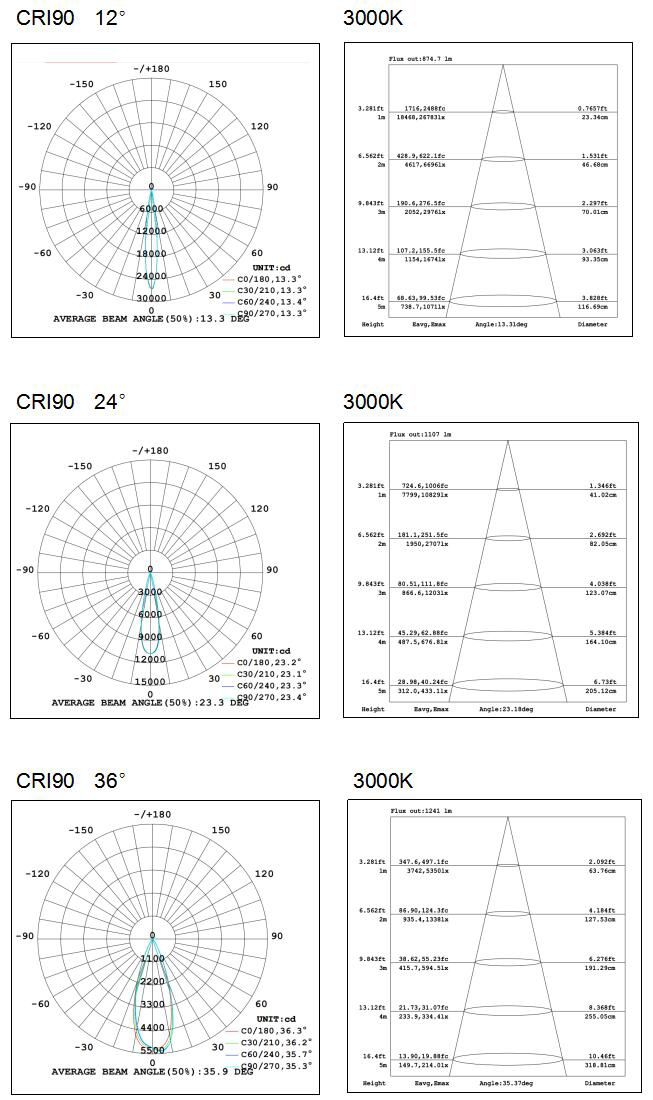

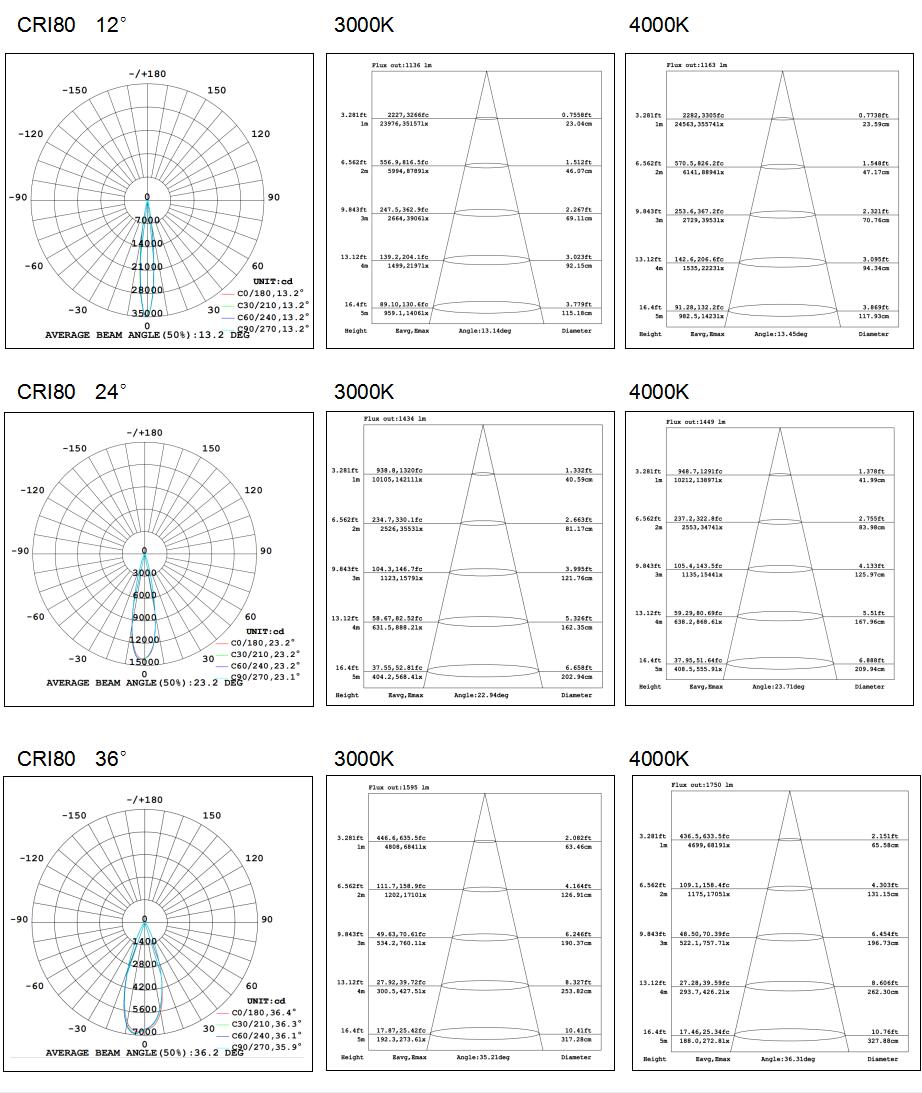

test pattern
Installation
instruction
Need more informations? Contact us
