SD12-L-28W
Suspension
Products
ALRP35-08
Product
information
| Product number | ALRP35 - 08 |
| Input Voltage (v): | 220-240V AC |
| Dimming | On/Off，Triac，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | N/A |
| Tilting Angle (degree) | N/A |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.32 |
| G.W. Carton (Kg) | 13 |
| Master carton dimensions(mm) | 520x420x365 |
| Quantity per carton(PCS) | 32 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
17 |
08W | 90 | 680.2 lm | 4000K | ALRP35S-02NC08G40-S |
| 641.7 lm | 3000K | ALRP35S-02NC08G30-S | |||
| 596.8 lm | 2700K | ALRP35S-02NC08G27-S | |||
24 |
08W | 90 | 675.9 lm | 4000K | ALRP35S-02NC08G40-M |
| 637.7 lm | 3000K | ALRP35S-02NC08G30-M | |||
| 593.1 lm | 2700K | ALRP35S-02NC06G27-M | |||
34 |
08W | 90 | 678.6 lm | 4000K | ALRP35S-02NC08G40-F |
| 640.2 lm | 3000K | ALRP35S-02NC08G30-F | |||
| 595.4 lm | 2700K | ALRP35S-02NC08G27-F |
Downloads

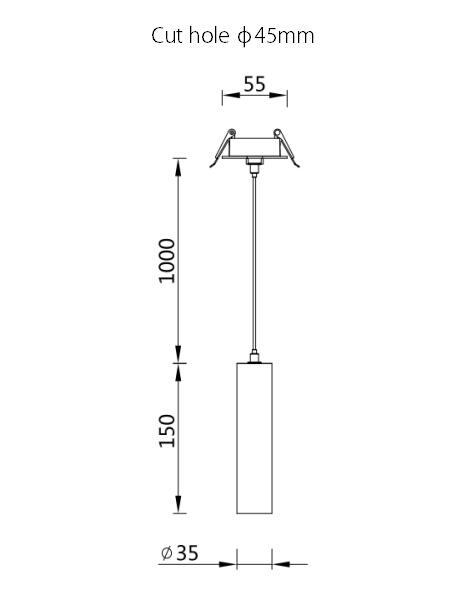

Size
Need more informations? Contact us
