ALT70-L20(Magnetic)
48V Track Mounted
Products
M20-T41312
Product
information
| Product number: | M20-T41312 - 36W |
| Track System: | 4 wire |
| Input Voltage (v): | 48V DC |
| Dimming: | On/Off，1-10V，DALI |
| Light source: | SMD LED |
| luminaire Lifetime: | 30.000h（L80, Ta25°C） |
| IP Rating: | 20 |
| Working Temperature (°C): | -5 ~ +30 |
| Shell Material: | Aluminium |
| Fitting Colors: | Sandy Black / Sandy White |
Packaging
information
| N.W. lamp (Kg): | 0.56 |
| G.W. Carton (Kg): | 15 |
| Master carton dimensions(mm): | 1265x340x220 |
| Quantity per carton(PCS): | 15 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
| 120D | 36W | 90 | 2323 lm | 4000K | M20-T41312-LNS36G40-120 |
| 2179 lm | 3000K | M20-T41312-LNS36G30-120 |
Downloads

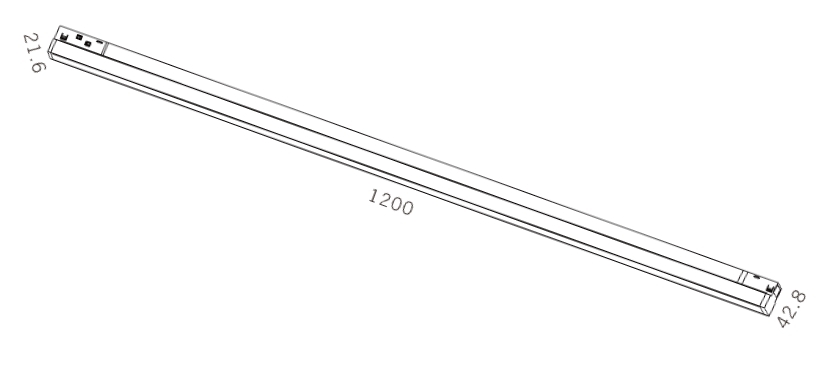

Size
Need more informations? Contact us
