Products

ALTP35-L06

Product
information

Product number	ALTP35 - L06
Track System:	4 wire
Input Voltage (v):	48VDC
Dimming	On/Off
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	N/A
Tilting Angle (degree)	N/A
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.42
G.W. Carton (Kg)	16
Master carton dimensions(mm)	520x420x365
Quantity per carton(PCS)	32

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
17	06W	90	556.7 lm	4000K	ALTP35S-402LNC06G40-S
			525.2 lm	3000K	ALTP35S-402LNC06G30-S
			488.4 lm	2700K	ALTP35S-402LNC06G27-S
24	06W	90	553.6 lm	4000K	ALTP35S-402LNC06G40-M
			522.3 lm	3000K	ALTP35S-402LNC06G30-M
			485.7 lm	2700K	ALTP35S-402LNC06G27-M
34	06W	90	555.2 lm	4000K	ALTP35S-402LNC06G40-F
			523.8 lm	3000K	ALTP35S-402LNC06G30-F
			487.1 lm	2700K	ALTP35S-402LNC06G27-F

Downloads

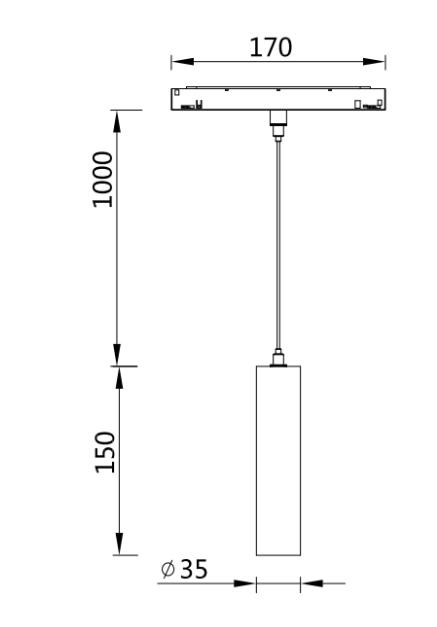

Size

ALTP35 - L06
