ALTP55-L13

Product
information

Product number:	ALTP55 - L13
Track System:	4 wire
Input Voltage (v):	48VDC
Dimming	On/Off
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	N/A
Tilting Angle (degree)	N/A
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.62
G.W. Carton (Kg)	21
Master carton dimensions(mm)	520x420x365
Quantity per carton(PCS)	32

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
15	13W	90	963.9 lm	4000K	ALTP55S-402LNC13G40-S
			909.3 lm	3000K	ALTP55S-402LNC13G30-S
			845.6 lm	2700K	ALTP55S-402LNC13G27-S
21	13W	90	909.7 lm	4000K	ALTP55S-402LNC13G40-M
			858.2 lm	3000K	ALTP55S-402LNC13G30-M
			798.1 lm	2700K	ALTP55S-402LNC13G27-M
36	13W	90	774.8 lm	4000K	ALTP55S-402LNC13G40-F
			730.9 lm	3000K	ALTP55S-402LNC13G30-F
			679.7 lm	2700K	ALTP55S-402LNC13G27-F
49	13W	90	827.6 lm	4000K	ALTP55S-402LNC13G40-WF
			780.8 lm	3000K	ALTP55S-402LNC13G30-WF
			726.1 lm	2700K	ALTP55S-402LNC13G27-WF

Downloads

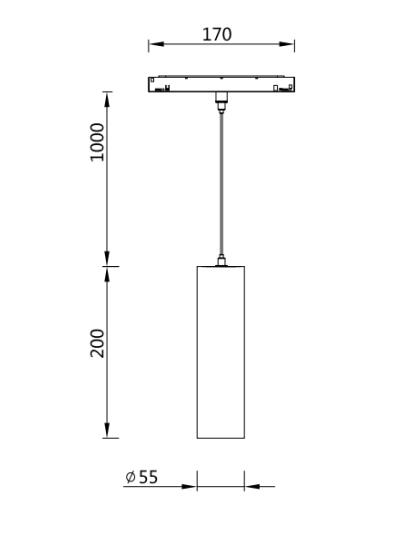

Size

ALTP55 - L13
