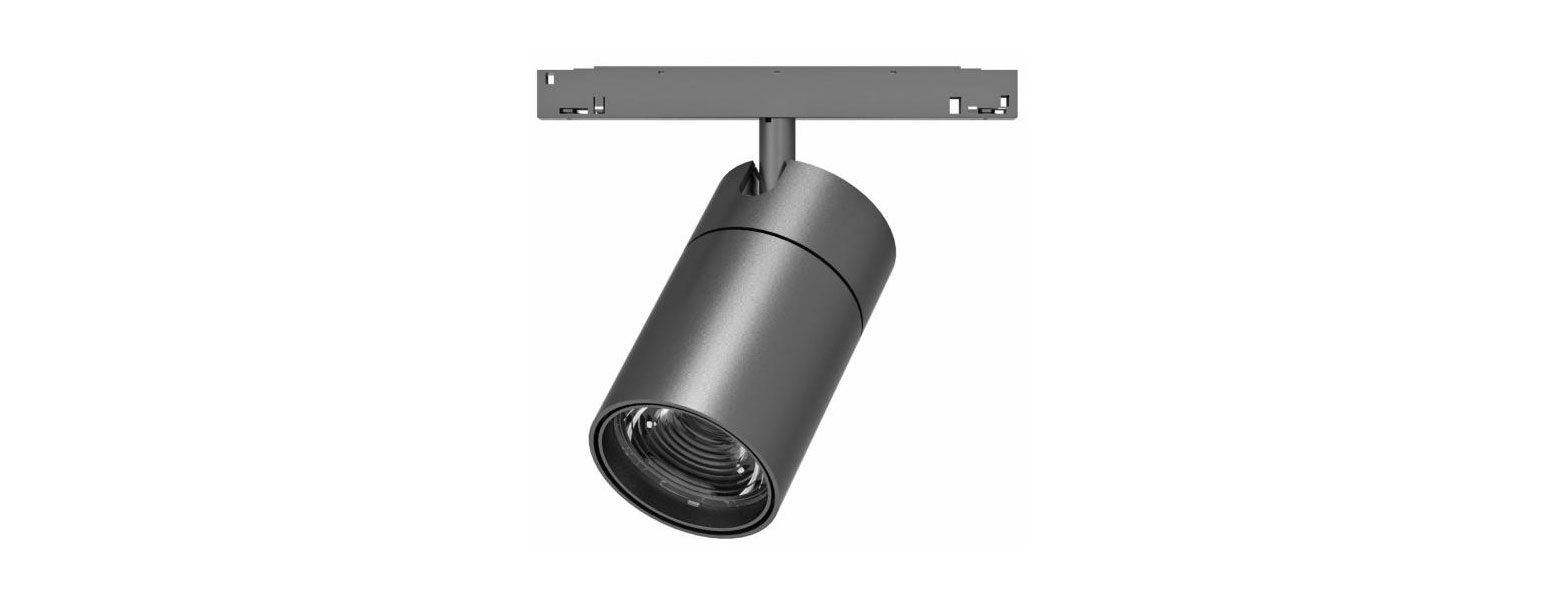

ALT70-L20(Non-magnetic)

Product
information

Product number：	ALT70 - L20
Track System:	2 wire, 4 wire
Input Voltage (v):	48VDC
Dimming:	On/Off，1-10V，DALI
Light source:	COB LED
luminaire Lifetime:	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree):	350
Tilting Angle (degree):	90
IP Rating:	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~ +50
Material:	Aluminium
Fitting Colors:	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg):	0.6
G.W. Carton (Kg):	12
Master carton dimensions(mm):	430x430x390
Quantity per carton:	16

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
16	20W	90	1820.0 lm	4000K	ALT70S-4LNC20G40-S
			1717.0 lm	3000K	ALT70S-4LNC20G30-S
			1596.8 lm	2700K	ALT70S-4LNC20G27-S
22	20W	90	1809.4 lm	4000K	ALT70S-4LNC20G40-M
			1707.0 lm	3000K	ALT70S-4LNC20G30-M
			1587.5 lm	2700K	ALT70S-4LNC20G27-M
34	20W	90	1679.2 lm	4000K	ALT70S-4LNC20G40-F
			1584.2 lm	3000K	ALT70S-4LNC20G30-F
			1473.3 lm	2700K	ALT70S-4LNC20G27-F
43	20W	90	1644.7 lm	4000K	ALT70S-4LNC20G40-WF
			1551.6 lm	3000K	ALT70S-4LNC20G30-WF
			1443.0 lm	2700K	ALT70S-4LNC20G27-WF

Downloads

Spec sheet

Size

ALT70 - L20(tiansheng)
