DL30-50W
Veralite
Ceiling Mounted

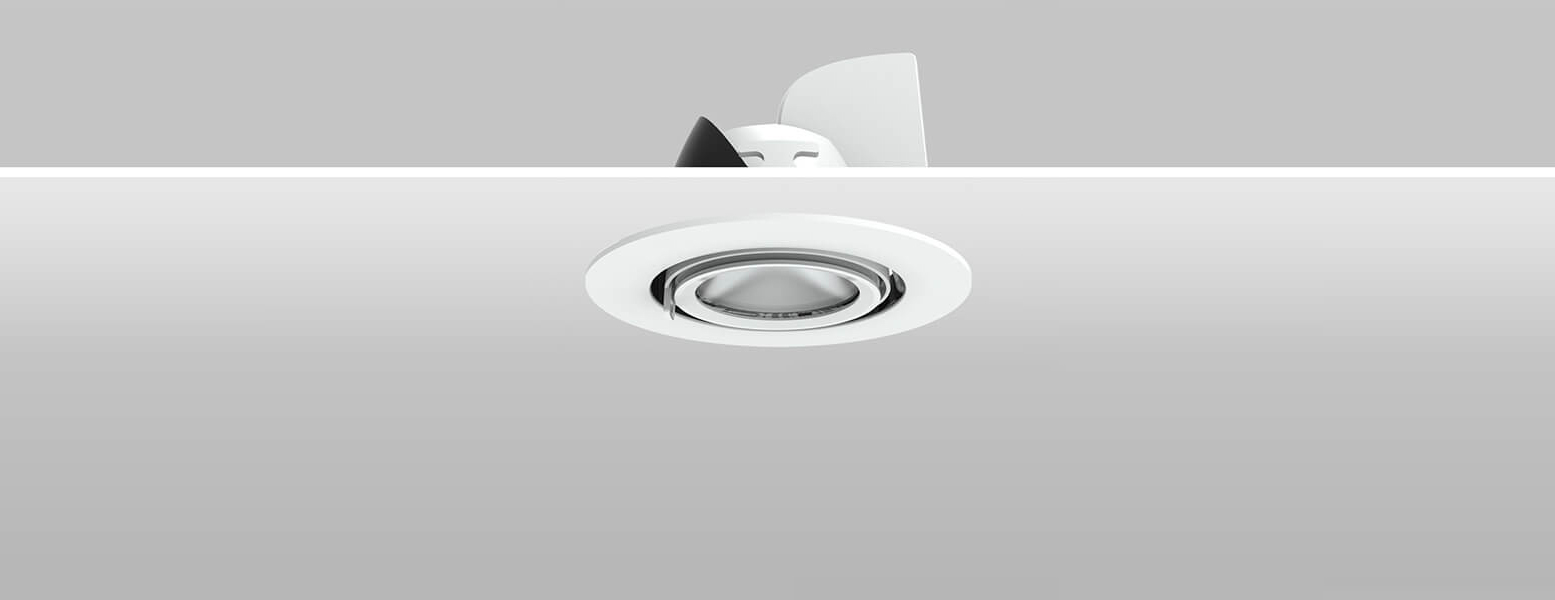

DL181-30W

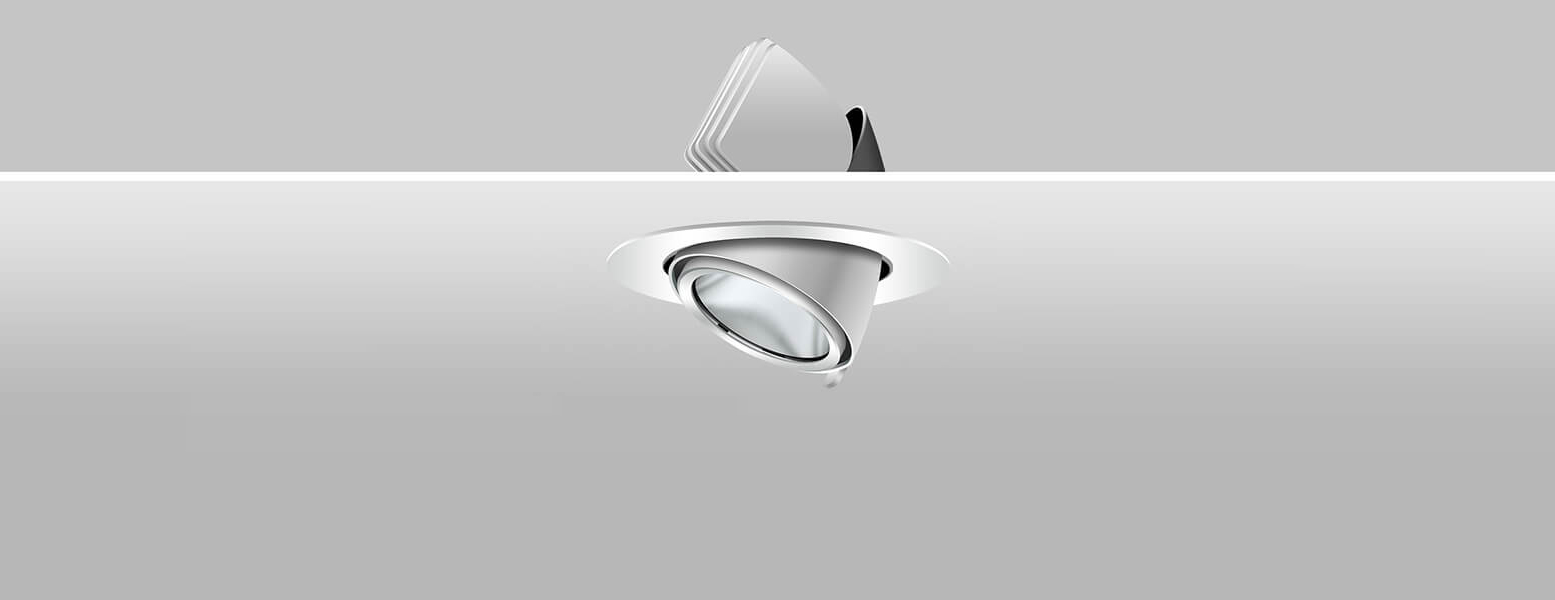

Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 700mA (35-37V) |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 1.1KG |
Packaging
information
| Master carton dimensions(mm)： |
L230*W230*H220mm (Box) L480xW480xH470mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 8pcs/CTN |
| G.W. Carton (Kg)： |
1.55kg/box 13kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
|---|---|---|---|---|---|---|
| 30W | >80 | 15° | 2913 lm | 3000K | DL181-30W-830-W-15 | |
| 3130 lm | 4000K | DL181-30W-840-W-15 | ||||
| 2997 lm | 5000K | DL181-30W-850-W-15 | ||||
| 20° | 2804 lm | 3000K | DL181-30W-830-W-20 | |||
| 3032 lm | 4000K | DL181-30W-840-W-20 | ||||
| 2872 lm | 5000K | DL181-30W-850-W-20 | ||||
| 45° | 2804 lm | 3000K | DL181-30W-830-W-45 | |||
| 2906 lm | 4000K | DL181-30W-840-W-45 | ||||
| 2941 lm | 5000K | DL181-30W-850-W-45 | ||||
| >90 | 15° | 2454 lm | 3000K | DL181-30W-930-W-15 | ||
| 20° | 2392 lm | 3000K | DL181-30W-930-W-20 | |||
| 45° | 2283 lm | 3000K | DL181-30W-930-W-45 |
Downloads

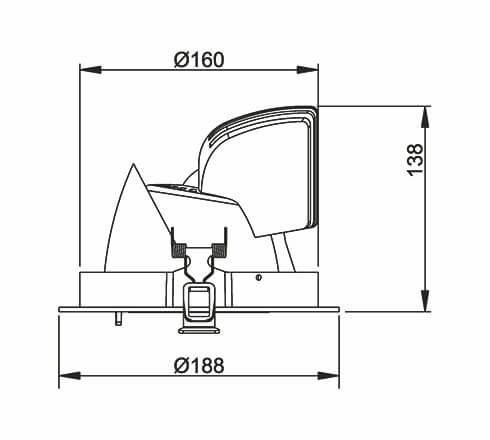

Size
Need more informations? Contact us
