TL30-30W
iTrack Vera
48V Track Mounted
TL22-20W

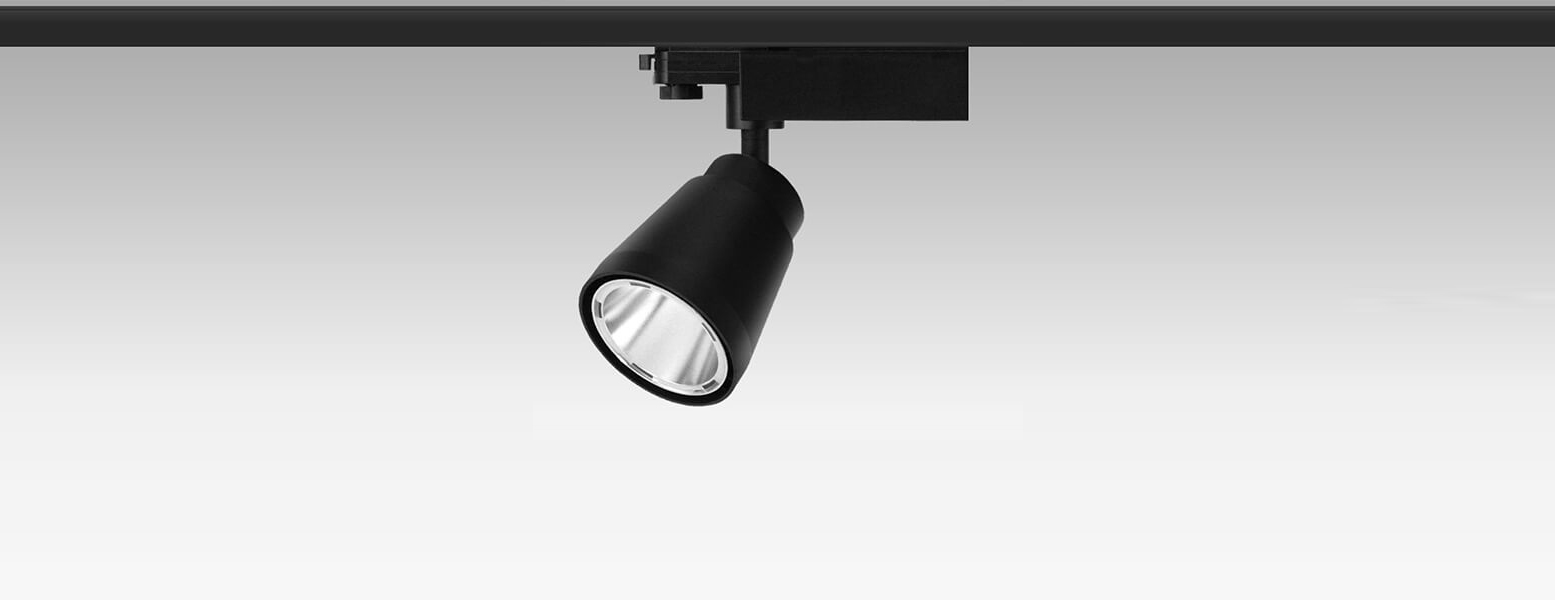

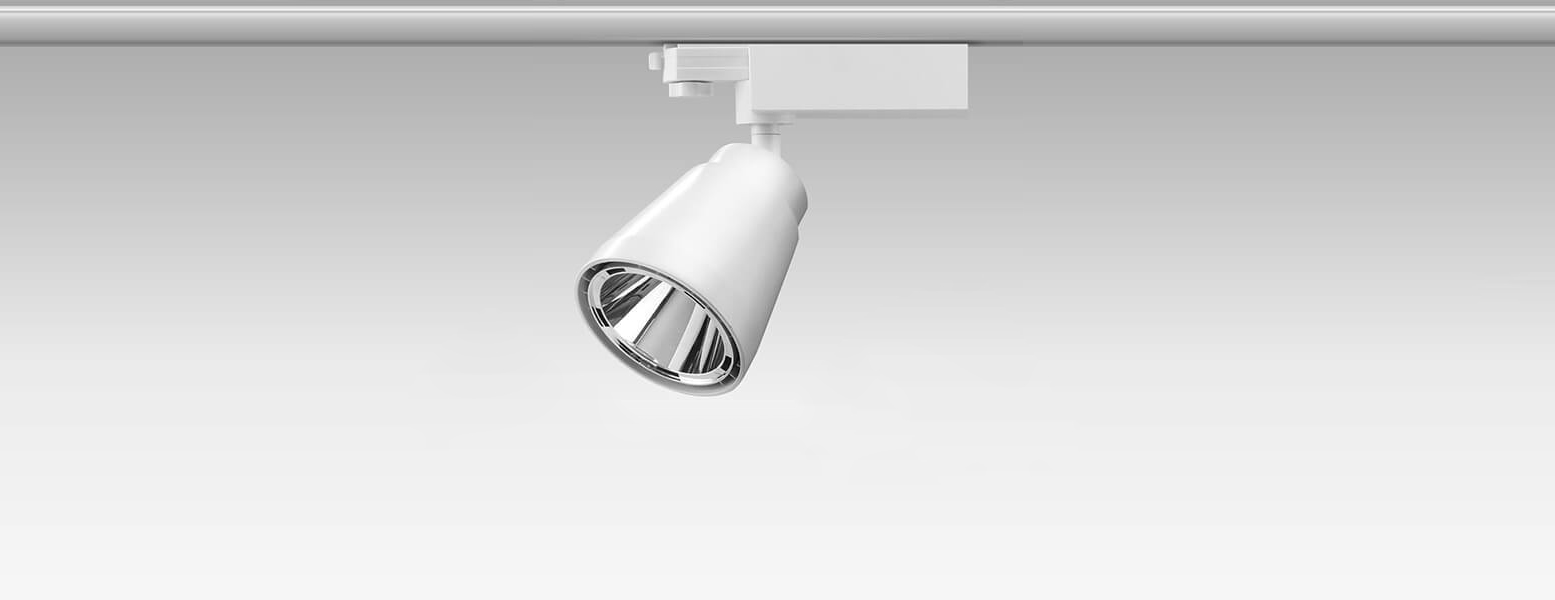

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13), all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 500mA,35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Weight: | 1.15KG |
Packaging
information
| Master carton dimensions(mm)： |
L135*W115*H310mm(Box) L670Xw500xH350mm(Outer carton) |
| Quantity per carton(PCS)： |
1pc/box 12 pcs/CTN |
| G.W. Carton (Kg)： |
1.25kg/box 16.5kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 10° | 2040 lm | 3000K | TL224-20W-830-W-10 | |
| TL224-20W-830-B-10 | ||||||
| 2050 lm | 4000K | TL224-20W-840-W-10 | ||||
| TL224-20W-840-B-10 | ||||||
| 20° | 2060 lm | 3000K | TL224-20W-830-W-20 | |||
| TL224-20W-830-B-20 | ||||||
| 2060 lm | 4000K | TL224-20W-840-W-20 | ||||
| TL224-20W-840-B-20 | ||||||
| 38° | 2050 lm | 3000K | TL224-20W-830-W-38 | |||
| TL224-20W-830-B-38 | ||||||
| 2040 lm | 4000K | TL224-20W-840-W-38 | ||||
| TL224-20W-840-B-38 | ||||||
| >90 | 10° | 1730 lm | 3000K | TL224-20W-930-W-10 | ||
| TL224-20W-930-B-10 | ||||||
| 1870 lm | 4000K | TL224-20W-940-W-10 | ||||
| TL224-20W-940-B-10 | ||||||
| 20° | 1750 lm | 3000K | TL224-20W-930-W-20 | |||
| TL224-20W-930-B-20 | ||||||
| 1900 lm | 4000K | TL224-20W-940-W-20 | ||||
| TL224-20W-940-B-20 | ||||||
| 38° | 1750 lm | 3000K | TL224-20W-930-W-38 | |||
| TL224-20W-930-B-38 | ||||||
| 1890 lm | 4000K | TL224-20W-940-W-38 | ||||
| TL224-20W-940-B-38 |
Downloads
Size
Need more informations? Contact us
