TL15-40W
iTrack Tec
48V Track Mounted
TL15-40W
This track spot is featured with integrated design, powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and cross accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 12,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 1000mA,35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Weight: | 1.75KG |
Packaging
information
| Master carton dimensions(mm)： |
L245*W245*H220mm(Box) L520xW520xH460mm(Outer carton) |
| Quantity per carton(PCS)： |
1pc/box 8pcs/CTN |
| G.W. Carton (Kg)： |
1.95kg/box 17kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 40W | >80 | 12° | 4140 lm | 3000K | TL154-40W-830-W-12 | |
| TL154-40W-830-B-12 | ||||||
| 4420 lm | 4000K | TL154-40W-840-W-12 | ||||
| TL154-40W-840-B-12 | ||||||
| 20° | 4180 lm | 3000K | TL154-40W-830-W-20 | |||
| TL154-40W-830-B-20 | ||||||
| 4350 lm | 4000K | TL154-40W-840-W-20 | ||||
| TL154-40W-840-B-20 | ||||||
| 45° | 4030 lm | 3000K | TL154-40W-830-W-45 | |||
| TL154-40W-830-B-45 | ||||||
| 4140 lm | 4000K | TL154-40W-840-W-45 | ||||
| TL154-40W-840-B-45 | ||||||
| >90 | 12° | 3530 lm | 3000K | TL154-40W-930-W-12 | ||
| TL154-40W-930-B-12 | ||||||
| 3700 lm | 4000K | TL154-40W-940-W-12 | ||||
| TL154-40W-940-B-12 | ||||||
| 20° | 3550 lm | 3000K | TL154-40W-930-W-20 | |||
| TL154-40W-930-B-20 | ||||||
| 3740 lm | 4000K | TL154-40W-940-W-20 | ||||
| TL154-40W-940-B-20 | ||||||
| 45° | 3400 lm | 3000K | TL154-40W-930-W-45 | |||
| TL154-40W-930-B-45 | ||||||
| 3650 lm | 4000K | TL154-40W-940-W-45 | ||||
| TL154-40W-940-B-45 |
Downloads

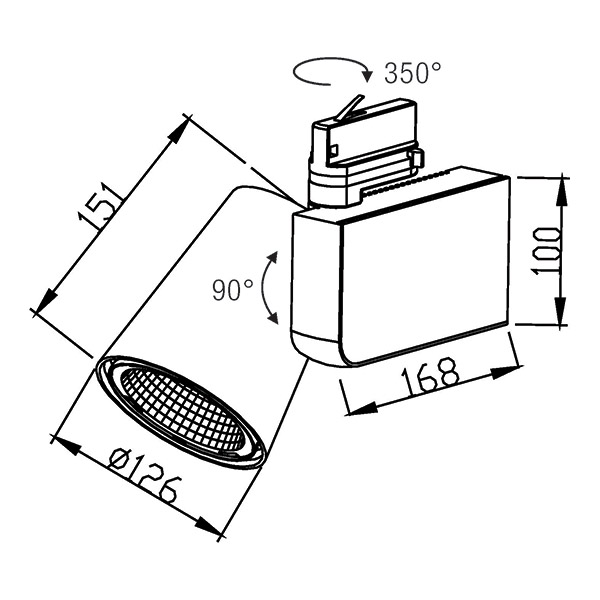

Size
Need more informations? Contact us
