TL42-30W
iTrack Pro

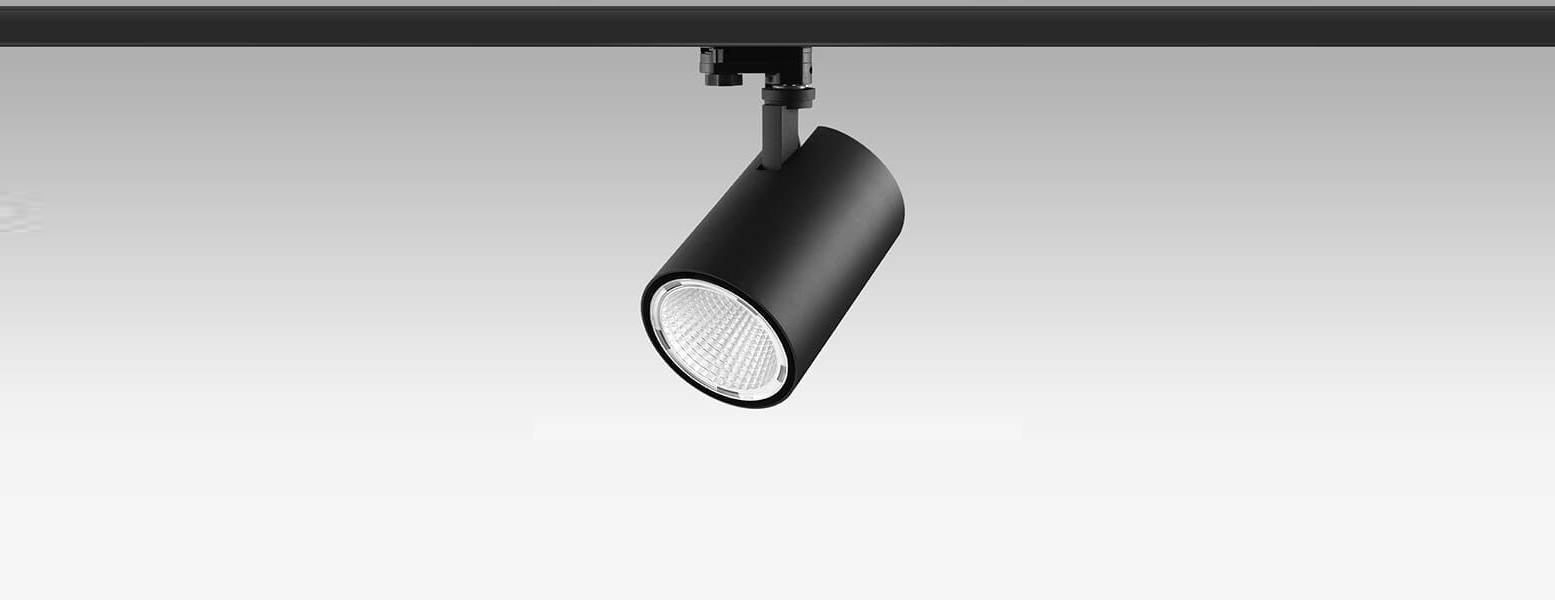

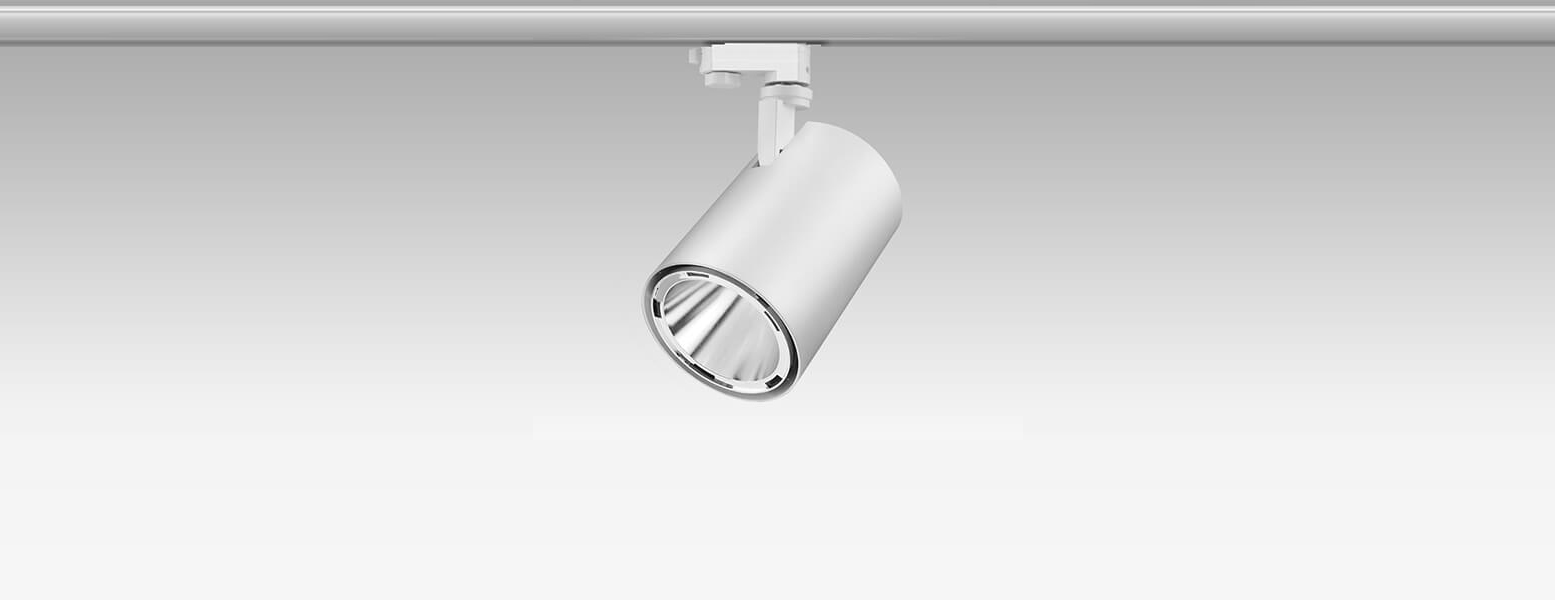

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.
Light source: | COB |
Input Voltage: | AC220~240V 50/60Hz |
Current: | 1000mA,35-37V |
Rated life: | >50,000 hours |
Operating temperature: | -20℃~40℃ |
Storage temperature: | -30℃~60℃ |
Certificate: | TUV/CE/RoHS |
Weight: | 1.75KG |
Master carton dimensions(mm): |
450x360x300(Box) L720xW310xH370mm(Outer carton) |
G.W. Carton (Kg): |
1pc/box 10 pcs/CTN |
Quantity per carton(PCS): |
2.0kg/box 21.5kg/carton |
Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
40W | >80 | >12° | 4140 lm | 3000K | TL114-40W-830-W-12 | |
TL114-40W-830-B-12 | ||||||
4420 lm | 4000K | TL114-40W-840-W-12 | ||||
TL114-40W-840-B-12 | ||||||
20° | 4180 lm | 3000K | TL114-40W-830-W-20 | |||
TL114-40W-830-B-20 | ||||||
4350 lm | 4000K | TL114-40W-840-W-20 | ||||
TL114-40W-840-B-20 | ||||||
45° | 4030 lm | 3000K | TL114-40W-830-W-45 | |||
TL114-40W-830-B-45 | ||||||
4140 lm | 4000K | TL114-40W-840-W-45 | ||||
TL114-40W-840-B-45 | ||||||
>90 | 12° | 3530 lm | 3000K | TL114-40W-930-W-12 | ||
TL114-40W-930-B-12 | ||||||
3700 lm | 4000K | TL114-40W-940-W-12 | ||||
TL114-40W-940-B-12 | ||||||
20° | 3550 lm | 3000K | TL114-40W-930-W-20 | |||
TL114-40W-930-B-20 | ||||||
3740 lm | 4000K | TL114-40W-940-W-20 | ||||
TL114-40W-940-B-20 | ||||||
45° | 3400 lm | 3000K | TL114-40W-930-W-45 | |||
TL114-40W-930-B-45 | ||||||
3650 lm | 4000K | TL114-40W-940-W-45 | ||||
TL114-40W-940-B-45 |
