TL45XS-Pro-8W-220V
FLOW.IT Lighting System
Products
GL12-1X20W
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 500mA, 35-37V |
| Beam Angle： | 15°/20°/36°/48°//60 |
| Life Time: | > 50,000h - L80 - B10 (Ta 25°C) |
| Operating temperature: | -20℃~40℃ |
| Certificate: | CE/RoHS |
| Weight: | 0.5kg |

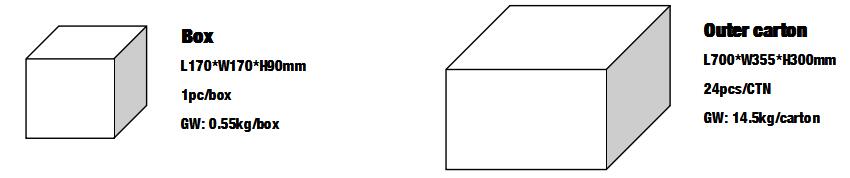

Packaging
information
System
overview
White Black
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 15° | 1910 lm | 3000K | GL1211-20W-830-W-15 | |
| GL1211-20W-830-B-15 | ||||||
| 2102 lm | 4000K | GL1211-20W-840-W-15 | ||||
| GL1211-20W-840-B-12 | ||||||
| 24° | 1778 lm | 3000K | GL1211-20W-830-W-24 | |||
| GL1211-20W-830-B-24 | ||||||
| 1962 lm | 4000K | GL1211-20W-840-W-24 | ||||
| GL1211-20W-840-B-24 | ||||||
| 36° | 1870 lm | 3000K | GL1211-20W-830-W-36 | |||
| GL1211-20W-830-B-36 | ||||||
| 2086 lm | 4000K | GL1211-20W-840-W-36 | ||||
| GL1211-20W-840-B-36 | ||||||
| >90 | 15° | 1566 lm | 3000K | GL1211-20W-930-W-15 | ||
| GL1211-20W-930-B-15 | ||||||
| 24° | 1766 lm | 3000K | GL1211-20W-930-W-24 | |||
| GL1211-20W-930-B-24 | ||||||
| 36° | 1672 lm | 3000K | GL1211-20W-930-W-36 | |||
| GL1211-20W-930-B-36 |
Downloads

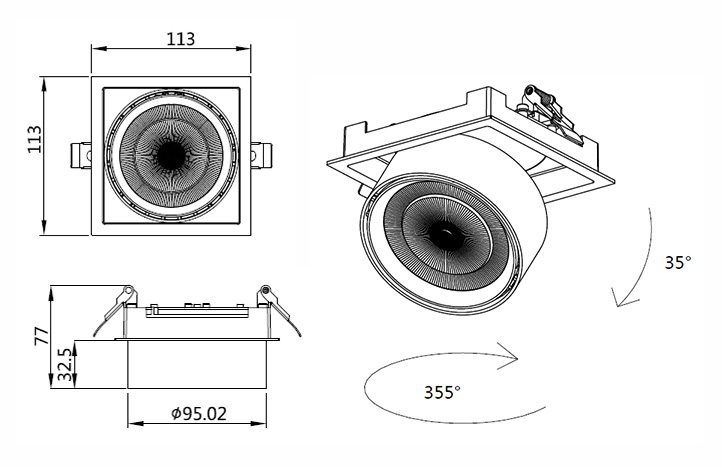

Size

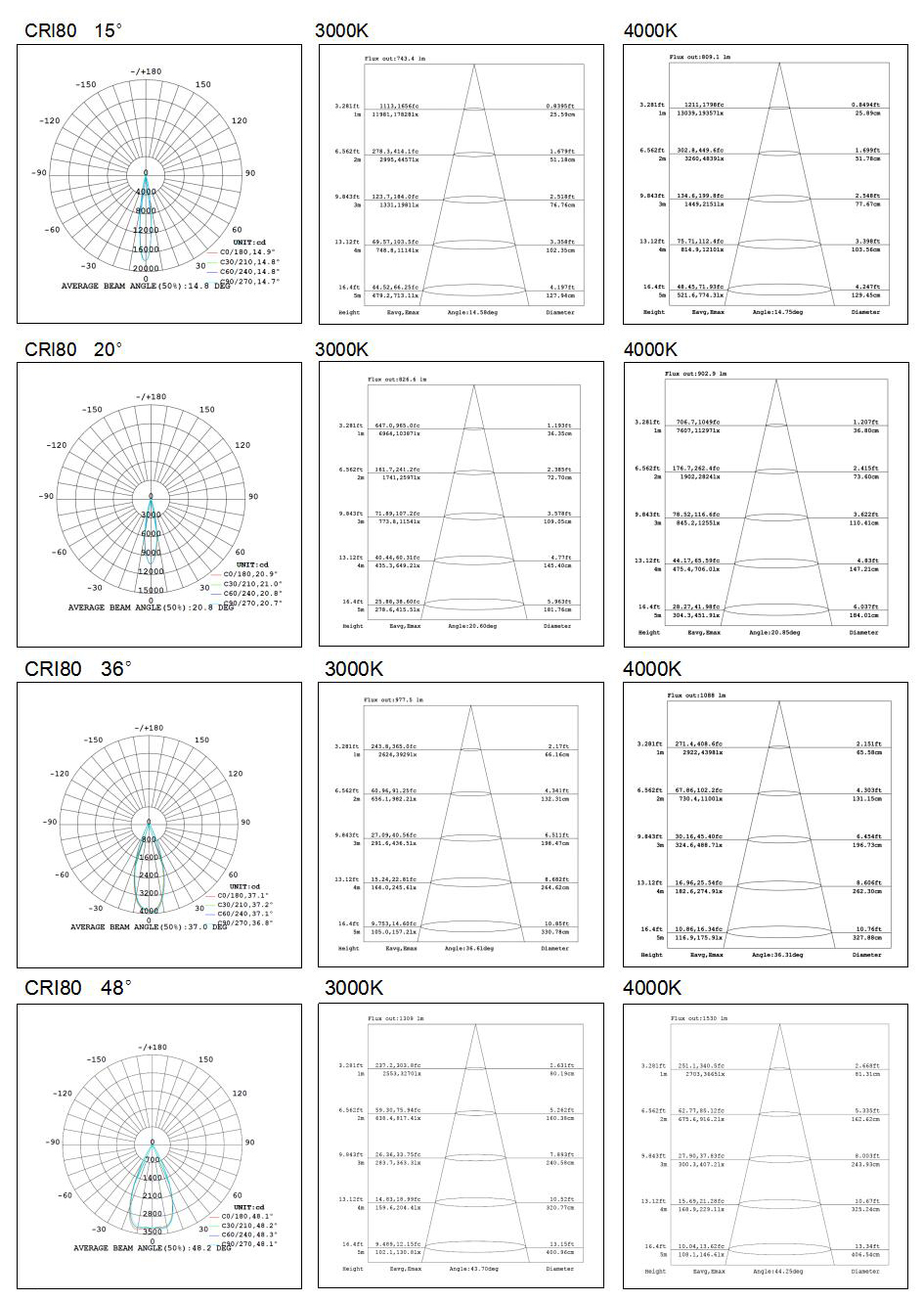

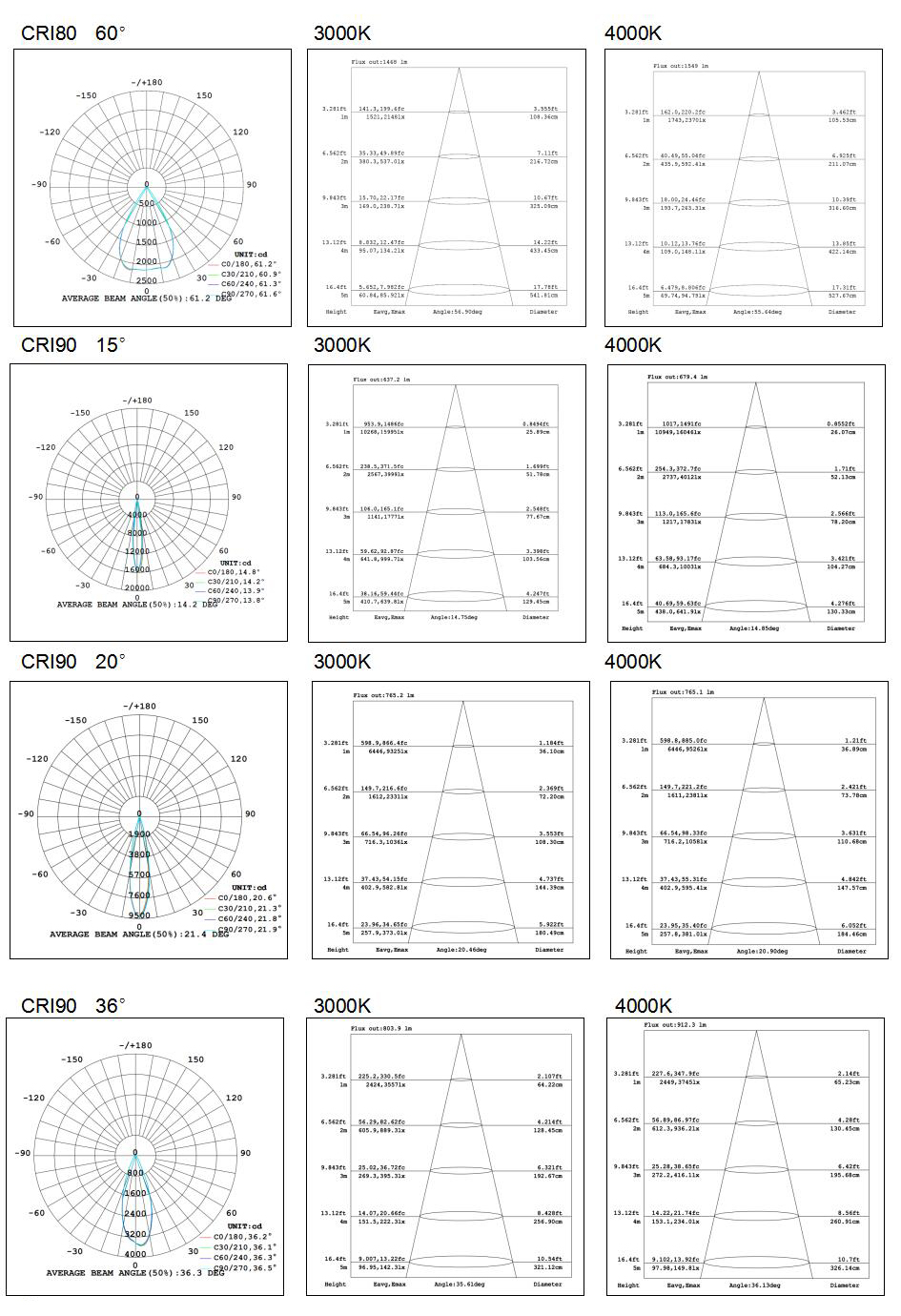

Technical Data
test pattern

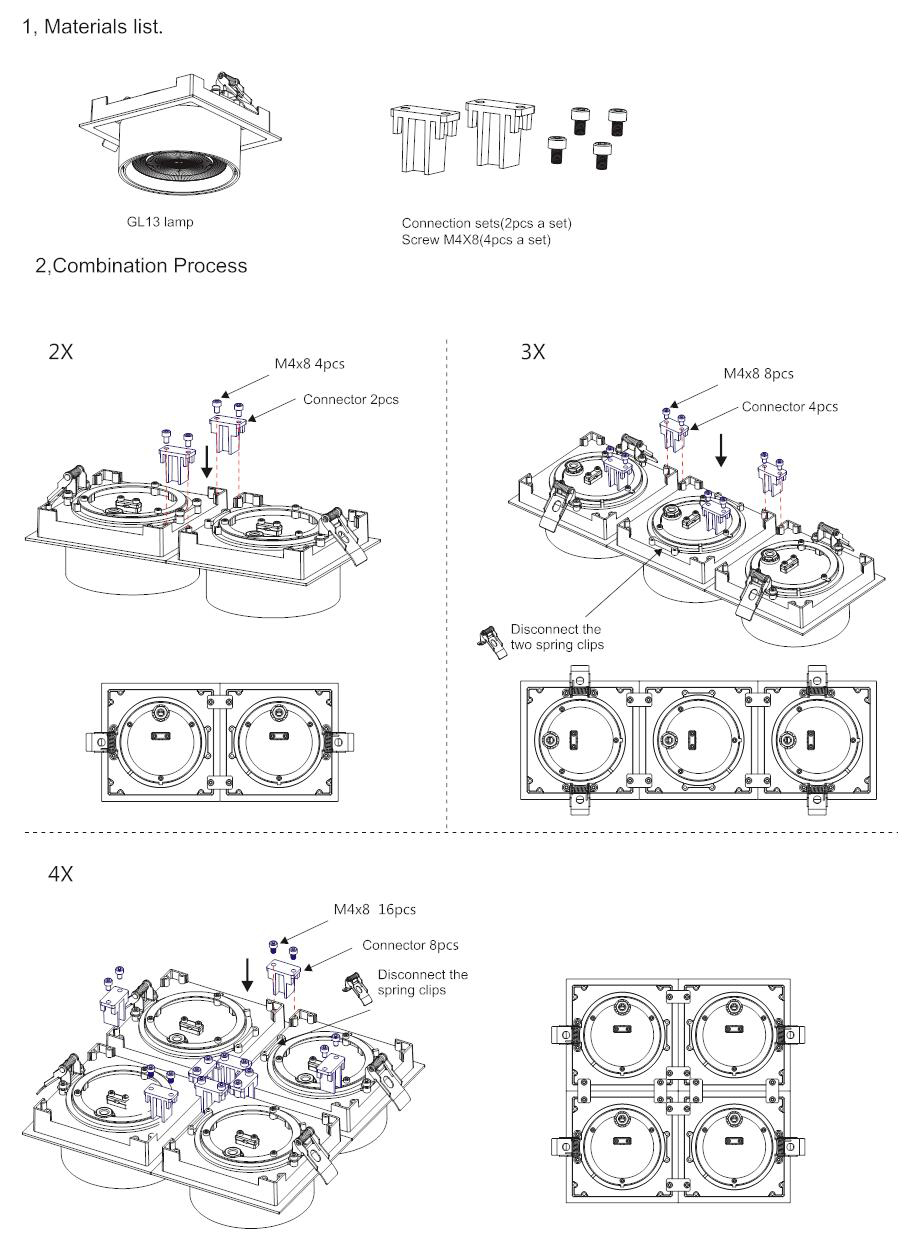

Combination Instructions
of GL12 Grille downlight

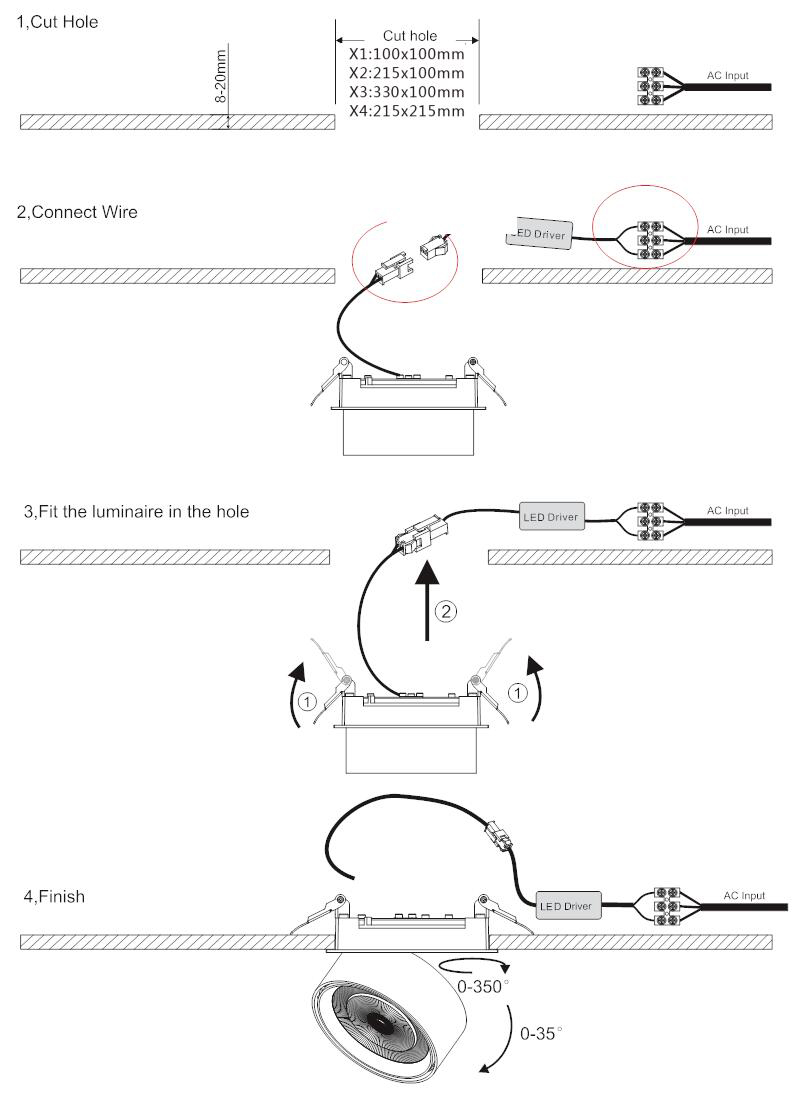

Installation
instruction
Need more informations? Contact us
