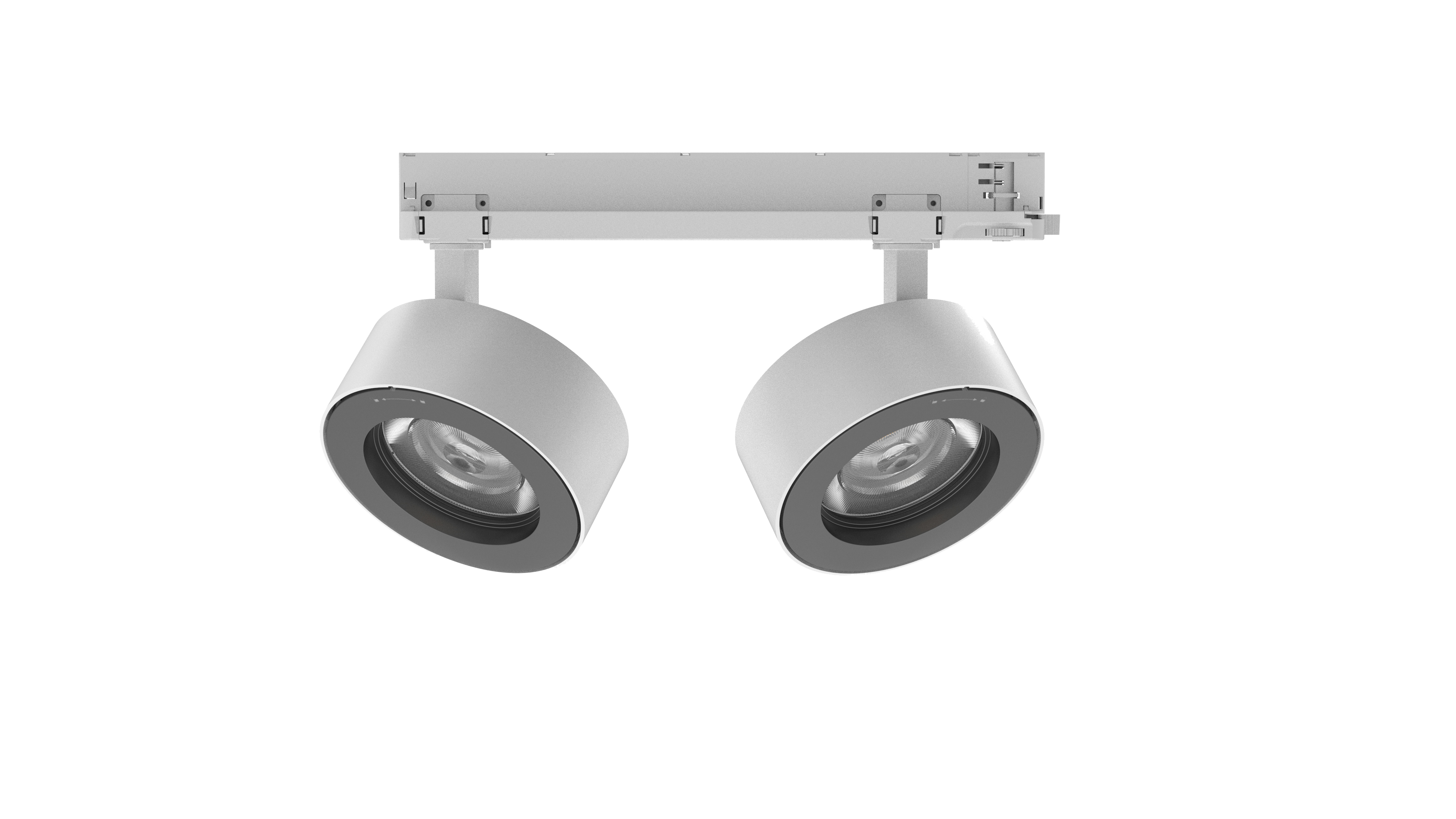

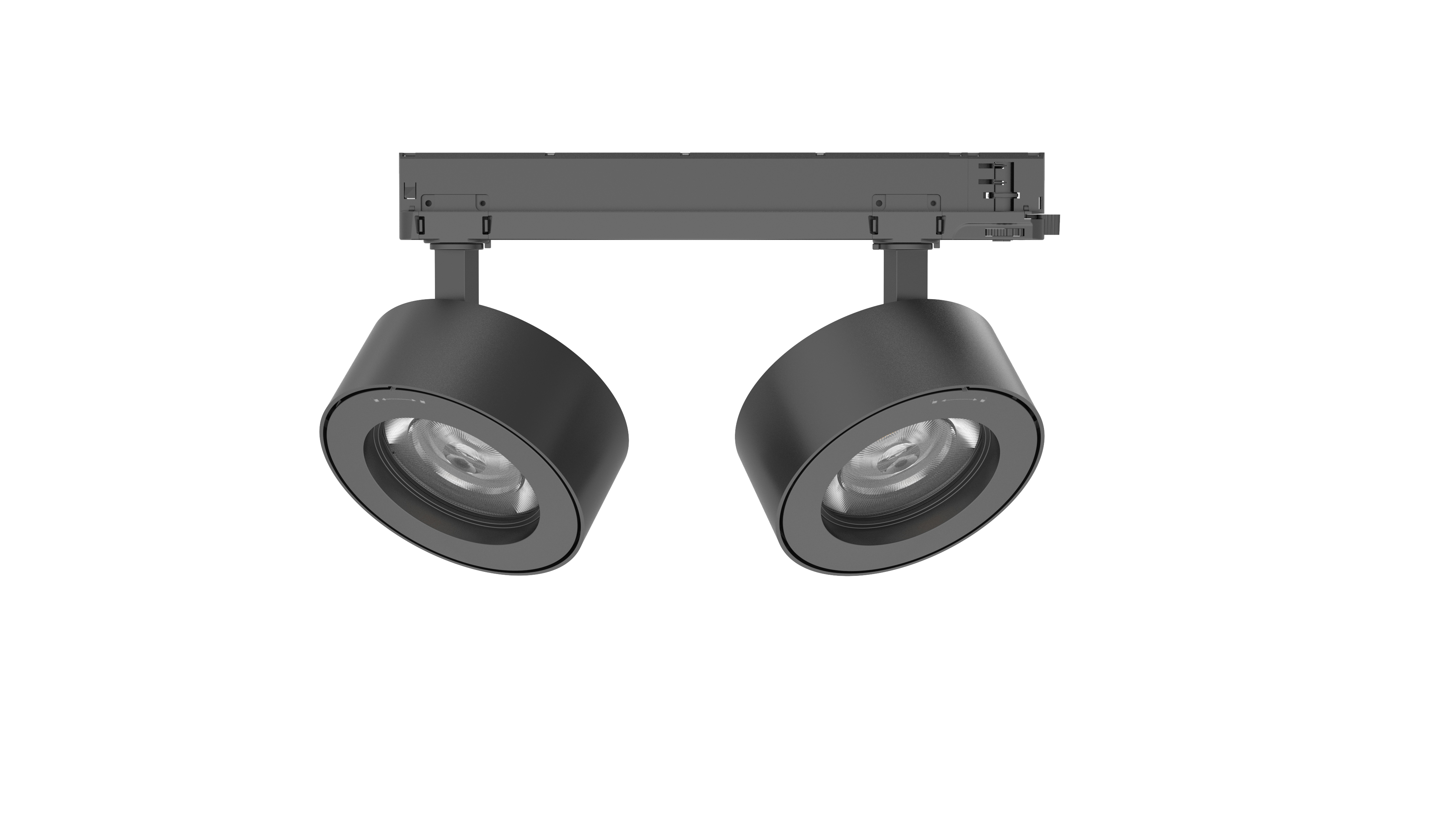

TL45XS-Pro-8W-220V
FLOW.IT Lighting System
Product number: |
TL45-XL -2x40W |
Track System: |
6 wire, 4 wire, 3 wire |
Input Voltage :
|
220-240V |
Dimming: |
On/Off,Triac,1-10V Knob,DALI |
Light source: |
COB LED |
luminaire Lifetime: |
L80,50.000H(Ta=25°C) |
Rotation Angle : |
350° |
Tilting Angle : |
90° |
Protection Level: |
IP20 |
Material: |
AL |
Fitting Colors: |
9016 Sandy White / 9017 Sandy Black |
Storage Temperature: |
-40˚C ~ +80 ˚C |
Working Temperature: |
-20˚C ~ +30 ˚C |
Warranty: |
|
N.W. lamp (Kg): |
0.97 |
G.W. Carton (Kg): |
16 |
Master carton dimensions(mm): |
L500*W500*W440 |
Quantity per carton(pcs): |
16 |
Beam |
Watt |
CRI |
Luminous |
CCT |
Code |
16 |
40W |
90 |
3740 lm |
4000K |
TL45XL-40G40-16-2X
|
|
|
|
3412 lm |
3000K |
TL45XL-40G30-16-2X |
|
|
|
|
|
|
26 |
40W |
90 |
3748 lm |
4000K |
TL45XL-40G40-26-2X
|
|
|
|
3419 lm |
3000K |
TL45XL-40G30-26-2X
|
|
|
|
|
|
|
40 |
40W |
90 |
3789 lm |
4000K |
TL45XL-40G40-40-2X
|
|
|
|
3456 lm |
3000K |
TL45XL-40G30-40-2X
|
|
|
|
|
|
|
66 |
40W |
90 |
3703 lm |
4000K |
TL45XL-40G40-66-2X
|
|
|
|
3378 lm |
3000K |
TL45XL-40G30-66-2X
|
