Products

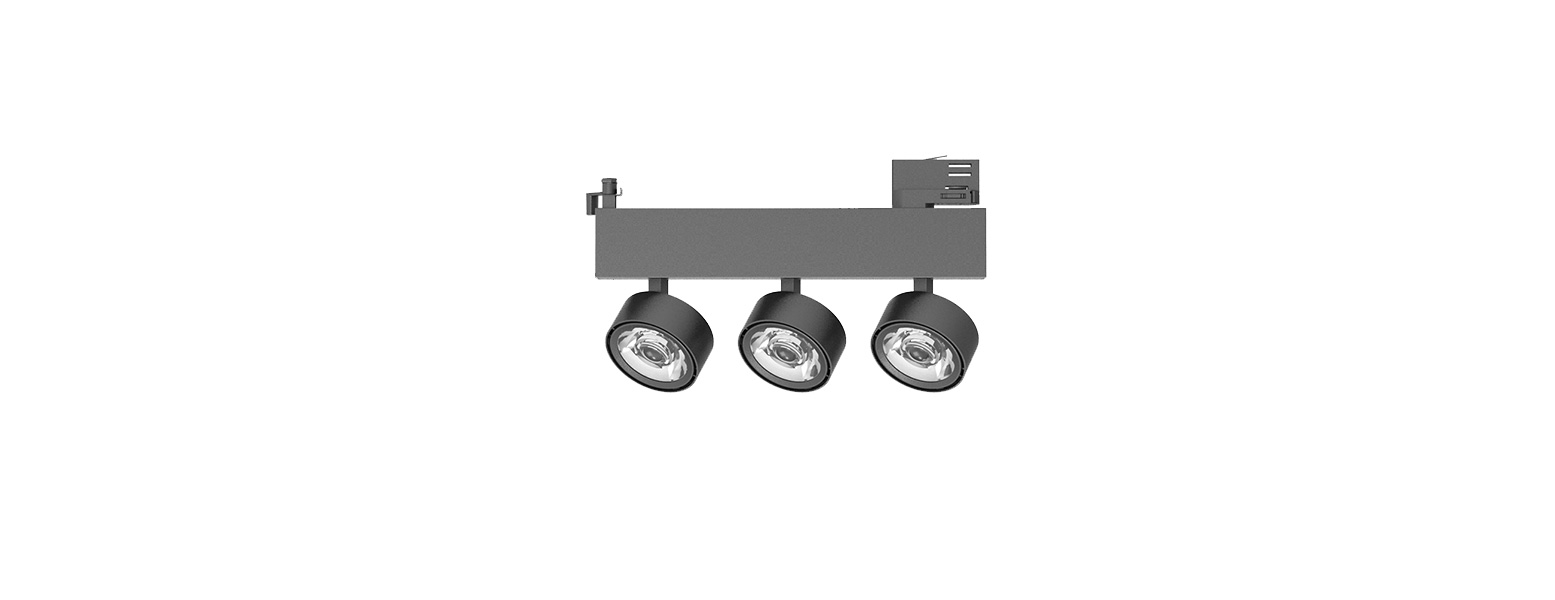

TL51-S-3x12

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	900mA, 35-37V
Beam Angle：	12°/24°/36°/60°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	1.36kg

Packaging
information

System
overview

White Black

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
3x12W	>80	12°	3X1200 lm	3000K		TL514-3X12W-830-W-12
			3X1200 lm	3000K		TL514-3X12W-830-B-12
			3X1300 lm	4000K		TL514-3X12W-840-W-12
			3X1300 lm	4000K		TL514-3X12W-840-B-12
		24°	3X1200 lm	3000K		TL514-3X12W-830-W-24
			3X1200 lm	3000K		TL514-3X12W-830-B-24
			3X1300 lm	4000K		TL514-3X12W-840-W-24
			3X1300 lm	4000K		TL514-3X12W-840-B-24
		36°	3X1200 lm	3000K		TL514-3X12W-830-W-36
			3X1200 lm	3000K		TL514-3X12W-830-B-36
			3X1300 lm	4000K		TL514-3X12W-840-W-36
			3X1300 lm	4000K		TL514-3X12W-840-B-36
	>90	12°	3X1050 lm	3000K		TL514-3X12W-930-W-12
		12°	3X1050 lm	3000K		TL514-3X12W-930-B-12
		24°	3X1080 lm	3000K		TL514-3X12W-930-W-24
		24°	3X1080 lm	3000K		TL514-3X12W-930-B-24
		36°	3X1100 lm	3000K		TL514-3X12W-930-W-36
		36°	3X1100 lm	3000K		TL514-3X12W-930-B-36

Downloads

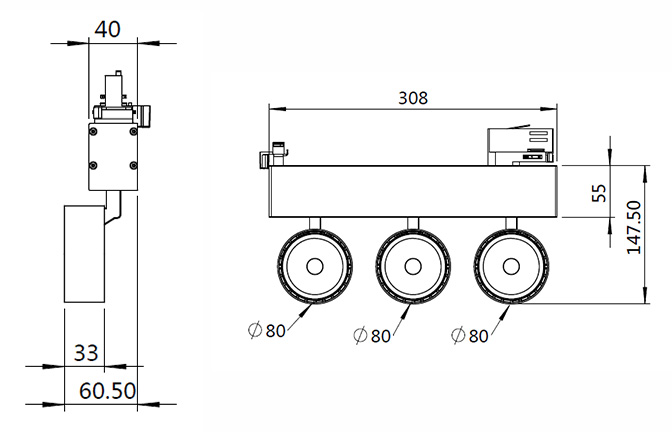

Size

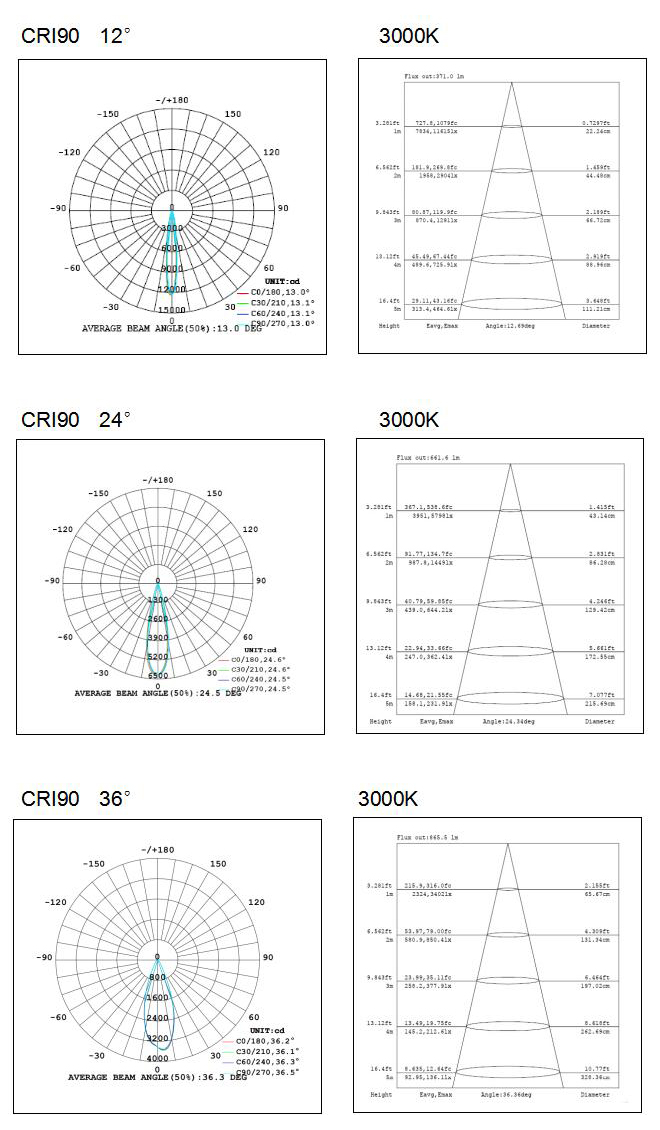

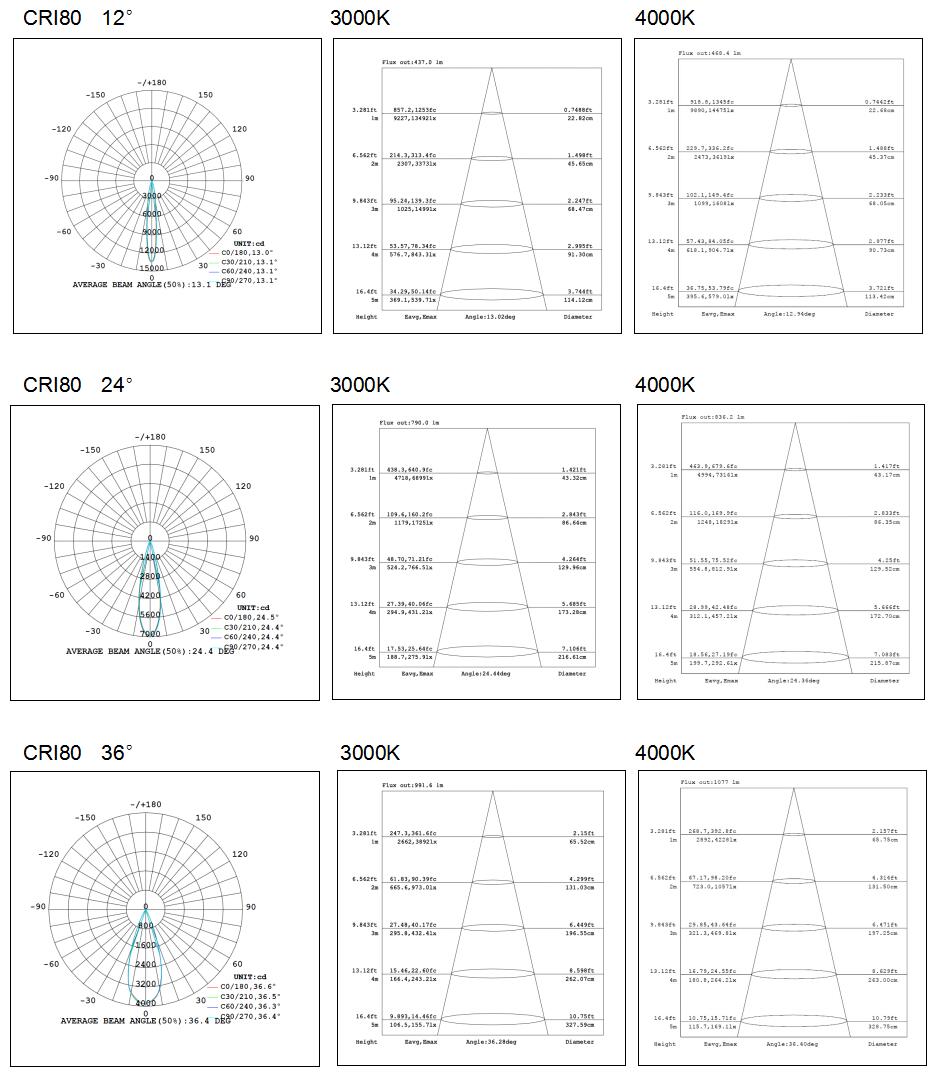

Technical Data
test pattern

TL51 Tacklight

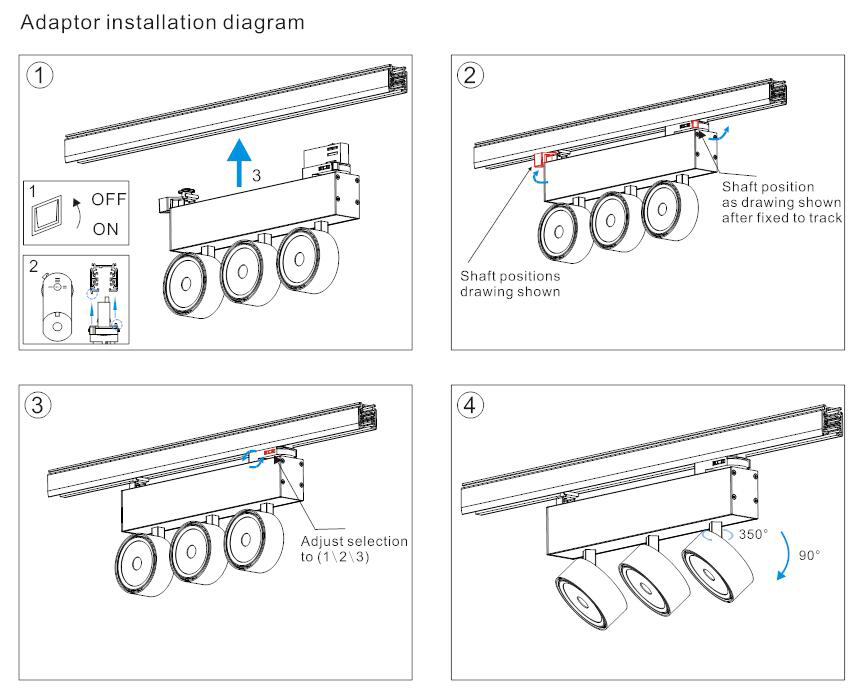

Installation Instructions
