TL32-30W
iTrack Vario
48V Track Mounted
TL32-30W
This track spot is featured with integrated design, compact size and powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). All these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient optical lens with 15 ,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 700mA,35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Weight: | 1.25KG |
Packaging
information
| Master carton dimensions(mm)： |
L165*W130*H200mm(Box) L545Xw355xH430mm(Outer carton) |
| Quantity per carton(PCS)： |
1pc/box 16pcs/CTN |
| G.W. Carton (Kg)： |
1.55kg/box 26kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
|---|---|---|---|---|---|---|
| 30W | >80 | 15° | 2980 lm | 3000K | TL324-30W-830-W-15 | |
| TL324-30W-830-B-15 | ||||||
| 3160 lm | 4000K | TL324-30W-840-W-15 | ||||
| TL324-30W-840-B-15 | ||||||
| 20° | 3010 lm | 3000K | TL324-30W-830-W-20 | |||
| TL324-30W-830-B-20 | ||||||
| 3250 lm | 4000K | TL324-30W-840-W-20 | ||||
| TL324-30W-840-B-20 | ||||||
| 45° | 2990 lm | 3000K | TL324-30W-830-W-45 | |||
| TL324-30W-830-B-45 | ||||||
| 3190 lm | 4000K | TL324-30W-840-W-45 | ||||
| TL324-30W-840-B-45 | ||||||
| >90 | 15° | 2670 lm | 3000K | TL324-30W-930-W-15 | ||
| TL324-30W-930-B-15 | ||||||
| 2810 lm | 4000K | TL324-30W-940-W-15 | ||||
| TL324-30W-940-B-15 | ||||||
| 20° | 2700 lm | 3000K | TL324-30W-930-W-20 | |||
| TL324-30W-930-B-20 | ||||||
| 2830 lm | 4000K | TL324-30W-940-W-20 | ||||
| TL324-30W-940-B-20 | ||||||
| 45° | 2680 lm | 3000K | TL324-30W-930-W-45 | |||
| TL324-30W-930-B-45 | ||||||
| 2810 lm | 4000K | TL324-30W-940-W-45 | ||||
| TL324-30W-940-B-45 |
Downloads

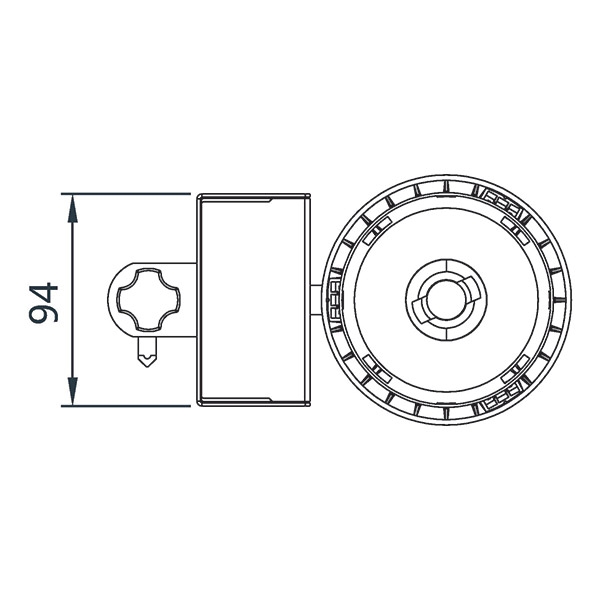

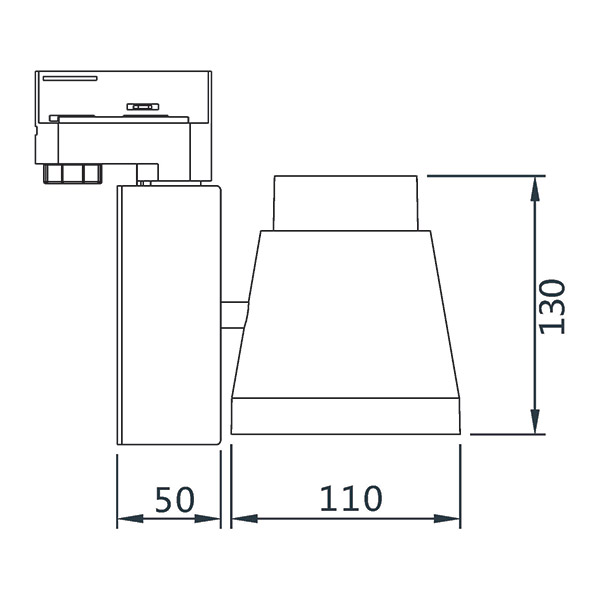

Size
Need more informations? Contact us
