Track Lighting

TL27-30W

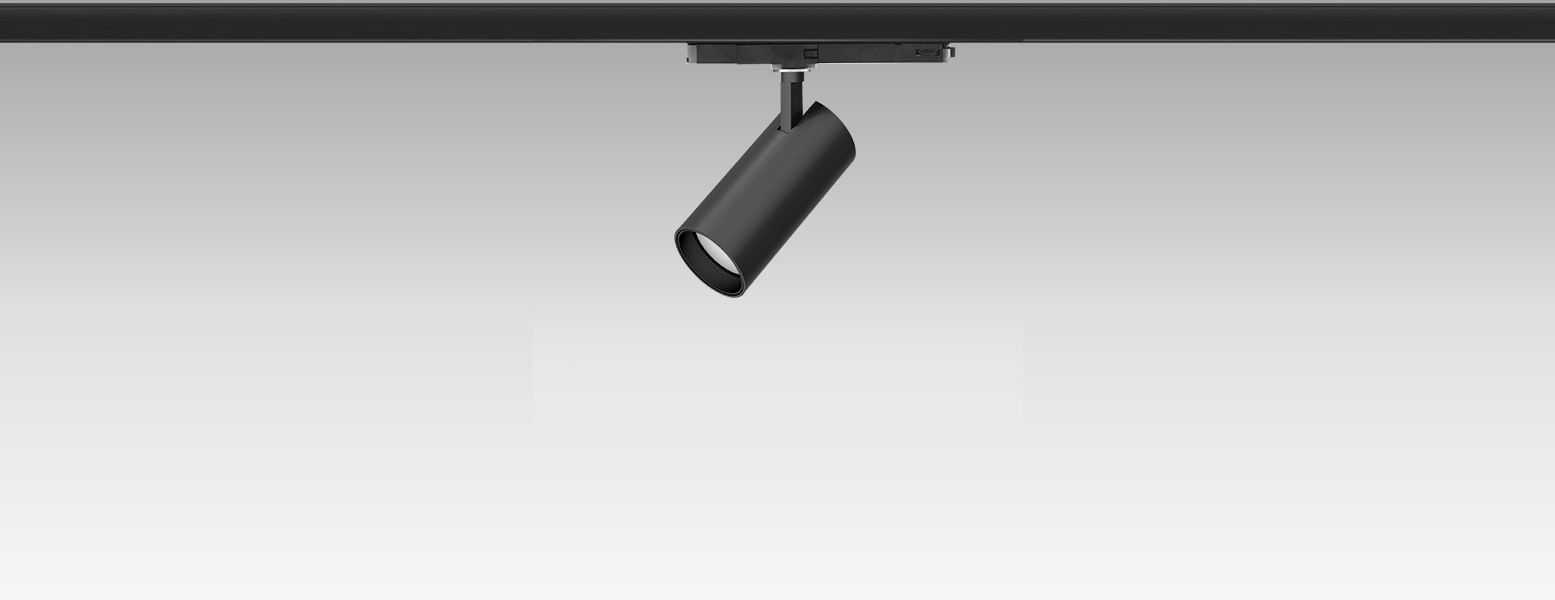

This track spot is featured with integrated design, compact size and powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 700mA,35-37V
Rated life: >35,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: CE/RoHS
Weight:

Packaging
information

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
30W >80 12° 2978 lm 3000K   DBA-TL274-30W-830-W-12
  DBA-TL274-30W-830-B-12
3159 lm 4000K   DBA-TL274-30W-840-W-12
  DBA-TL274-30W-840-B-12
24° 3009 lm 3000K   DBA-TL274-30W-830-W-24
  DBA-TL274-30W-830-B-24
3248 lm 4000K   DBA-TL274-30W-840-W-24
  DBA-TL274-30W-840-B-24
45° 2986 lm 3000K   DBA-TL274-30W-830-W-45
  DBA-TL274-30W-830-B-45
3184 lm 4000K   DBA-TL274-30W-840-W-45
  DBA-TL274-30W-840-B-45
>90 12° 2668 lm 3000K   DBA-TL274-30W-930-W-12
  DBA-TL274-30W-930-B-12
2800 lm 4000K   DBA-TL274-30W-940-W-12
  DBA-TL274-30W-940-B-12
24° 2697 lm 3000K   DBA-TL274-30W-930-W-24
  DBA-TL274-30W-930-B-24
2500 lm 4000K   DBA-TL274-30W-940-W-24
  DBA-TL274-30W-940-B-24
45° 2825 lm 3000K   DBA-TL274-30W-930-W-45
  DBA-TL274-30W-930-B-45
2805 lm 4000K   DBA-TL274-30W-940-W-45
  DBA-TL274-30W-940-B-45
