M042-20W
Modular Systems
Products
M042-20W
This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 500mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 0.3KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 15° | 2300 lm | 3000K | M042*-20W-830-S-15 | |
| 2300 lm | 4000K | M042*-20W-840-S-15 | ||||
| 24° | 2270 lm | 3000K | M042*-20W-830-S-24 | |||
| 2275 lm | 4000K | M042*-20W-840-S-24 | ||||
| 38° | 2280 lm | 3000K | M042*-20W-830-S-38 | |||
| 2290 lm | 4000K | M042*-20W-840-S-38 | ||||
| 60° | 2295 lm | 3000K | M042*-20W-830-S-60 | |||
| 2310 lm | 4000K | M042*-20W-840-S-60 | ||||
| >90 | 15° | 1880 lm | 3000K | M042*-20W-930-S-15 | ||
| 2110 lm | 4000K | M042*-20W-940-S-15 | ||||
| 24° | 1850 lm | 3000K | M042*-20W-930-S-24 | |||
| 2075 lm | 4000K | M042*-20W-940-S-24 | ||||
| 38° | 1870lm | 3000K | M042*-20W-930-S-38 | |||
| 2115 lm | 4000K | M042*-20W-940-S-38 | ||||
| 60° | 1885 lm | 3000K | M042*-20W-930-S-60 | |||
| 2120 lm | 4000K | M042*-20W-940-S-60 |
Downloads

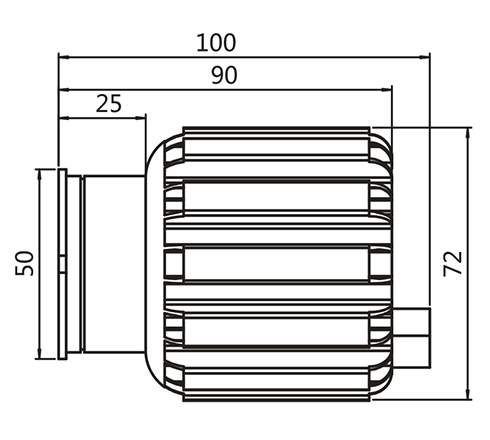

Size
Need more informations? Contact us
