RL071-40W
Pro
Ceiling Recessed Spotlights
RL061-20W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 500mA (35-37V) |
| Rated life: | > 50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE RoHS |
| Weight: | 1.15KG |
Packaging
information
| Master carton dimensions(mm)： |
L195*W130*H240mm (Box) L540*W410*H260mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 8 pcs/CTN |
| G.W. Carton (Kg)： |
1.15kg/box 10.5kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 10° | 2040 lm | 3000K | RL061-20W-830-W-10 | |
| 2050 lm | 4000K | RL061-20W-840-W-10 | ||||
| 20° | 2060 lm | 3000K | RL061-20W-830-W-20 | |||
| 2060 lm | 4000K | RL061-20W-840-W-20 | ||||
| 38° | 2050 lm | 3000K | RL061-20W-830-W-38 | |||
| 2040 lm | 4000K | RL061-20W-840-W-38 | ||||
| >90 | 10° | 1730 lm | 3000K | RL061-20W-930-W-15 | ||
| 1870 lm | 4000K | RL061-20W-940-W-15 | ||||
| 20° | 1750 lm | 3000K | RL061-20W-930-W-20 | |||
| 1900 lm | 4000K | RL061-20W-940-W-20 | ||||
| 38° | 1750 lm | 3000K | RL061-20W-930-W-38 | |||
| 1890 lm | 4000K | RL061-20W-940-W-38 |
Downloads

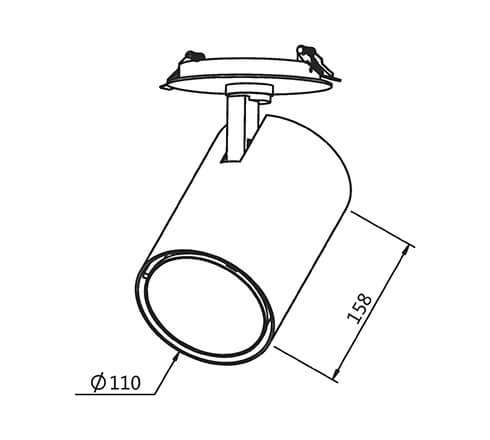

Size
Need more informations? Contact us
