ALT55-L15
ALTRACK Lighting System
Products
ALS70-24
Product
information
| Product number | ALS70 - 24 |
| Input Voltage (v): | 220-240V AC |
| Dimming | On/Off，Triac，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | N/A |
| Tilting Angle (degree) | N/A |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.66 |
| G.W. Carton (Kg) | 15 |
| Master carton dimensions(mm) | 515x415x305 |
| Quantity per carton(PCS) | 20 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
16 |
24W | 90 | 2012.1 lm | 4000K | ALS70S-NC24G40-S |
| 1898.2 lm | 3000K | ALS70S-NC24G30-S | |||
| 1765.3 lm | 2700K | ALS70S-NC24G27-S | |||
21 |
24W | 90 | 2028.8 lm | 4000K | ALS70S-NC24G40-M |
| 1914.0 lm | 3000K | ALS70S-NC24G30-M | |||
| 1780.0 lm | 2700K | ALS70S-NC24G27-M | |||
34 |
24W | 90 | 1911.4 lm | 4000K | ALS70S-NC24G40-F |
| 1803.2 lm | 3000K | ALS70S-NC24G30-F | |||
| 1676.9 lm | 2700K | ALS70S-NC24G27-F | |||
45 |
24W | 90 | 1926.9 lm | 4000K | ALS70S-NC24G40-WF |
| 1817.8 lm | 3000K | ALS70S-NC24G30-WF | |||
| 1690.6 lm | 2700K | ALS70S-NC24G27-WF |
Downloads

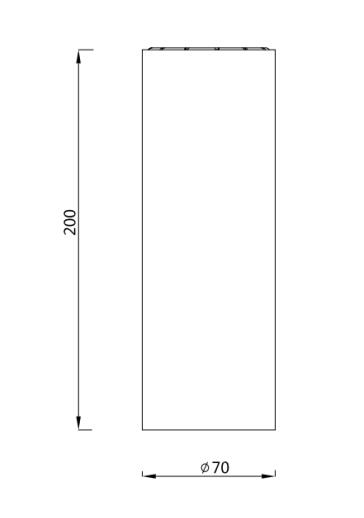

Size
Need more informations? Contact us
